Easy access to service points and jacks. Standard on L451 models
Heavy lifting, high production alignment racks
Hunter Four-Post Lifts
Alignment Rack
Four-Post Lifts
Heavy lifting, high production alignment racks
Hunter offers a four-post model for nearly every need. Easy to use open-front models make alignment easy. The widest runways and two wheelbase lengths make easy work of even medium-sized commercial vehicles. Add Inflation Station, PowerSlide, and Alignlight options to really ramp up productivity.
New Harsh Duty options available to for high road salt/brine use applications.
Features at-a-glance
-
Open-front or closed-front configurations
-
Stainless steel turnplates standard
-
Built-in slip plates standard
-
Two moveable worksteps standard
Specifications at-a-glance
-
8164 kgCapacity
-
2 x 4083 kgCapacity jacks
-
660 mmWide runways
-
4496 mm or 5360 mm2-Wheel alignment capable
Product family at-a-glance
L451
- Open Front - No Beam
- 4496 mm 2-wheel alignment wheelbase
- Powerslide and Inflation Station capable
L451L
- Open Front - No Beam
- 5360 mm 2-wheel alignment wheelbase
- Powerslide and Inflation Station capable
L454
- Closed Front Beam
- 4496 mm 2-wheel alignment wheelbase
- Powerslide and Inflation Station capable
L454L
- Closed Front Beam
- 5360 mm 2-wheel alignment wheelbase
- Powerslide and Inflation Station capable
See them in action
Four-Post Alignment Lift Overview
Hunter's industry-leading alignment technology on our four-post lift rack! Complete with Fully Integrated Alignment capabilities!
High capacity Swing Jacks
Hunter Swing Air Jacks add capabilities for lifting vehicles off the runways during alignment procedures and other multi-service operations.
Fast readings with Fully Integrated Alignment
Hunter's industry-leading alignment technology on our four-post lift rack! Complete with caster measurements!
Hunter's Four-Post and Scissor Alignment Lifts
Hunter's family of Lift Racks, including scissor and four-post lifts are available in traditional or flush mount configurations. The RX16 features a power up mode, lifting sixteen thousand pounds.
The Hunter Four-Post Lift Rack: Detailed Operation
See a hands-on demonstration of the Hunter series of four-post lift racks that includes raising the vehicle, using the swing air jacks, resetting the locks, and returning the vehicle to the floor.
Upgrade your vehicle service capabilities.
Features
Open-front workspace
Capable runways
Extra-wide runways can service vehicles up to 2337 mm. Two lengths are available to accomodate 4496 mm or 5360 mm wheelbases.
High-capacity
Heavy-weight 8164 kg lifting capacity is best-in-class.
Swing air jacks
Two 4083 kg capacity swing-air jacks come standard for unmatched height, reach and durability.
Integrated controls
Convenient console featuring push-button functions give technicians full-control.
Built-in slipplates
2235 mm to 4013 mm for 4-wheel alignments
Stainless steel turnplates
Standard, for a lifetime of easy and accurate alignments. PowerSlide™ turnplates offer ease-of-use.
Airline access
Air supplied to jacks and auxiliary ports come standard.
Two movable worksteps
Sturdy, lightweight and lock into multiple convenient locations
Optional AlignLights
See where you work. Lights shut off automatically when rack is lowered and turn on when raised.
Cables & locks
High-strength galvanized cables and 16-position louvered level locks provide long, reliable life.
Louvered approach ramps
High-traction design prevents wheel spin – better than diamond plate or abrasive finish.
Tough umbilical covering
Protective cord covering prevents damage to air and hydraulic lines.
Built & installed locally
Designed & built in the USA, and installed locally by Hunter's highly-qualified service team.

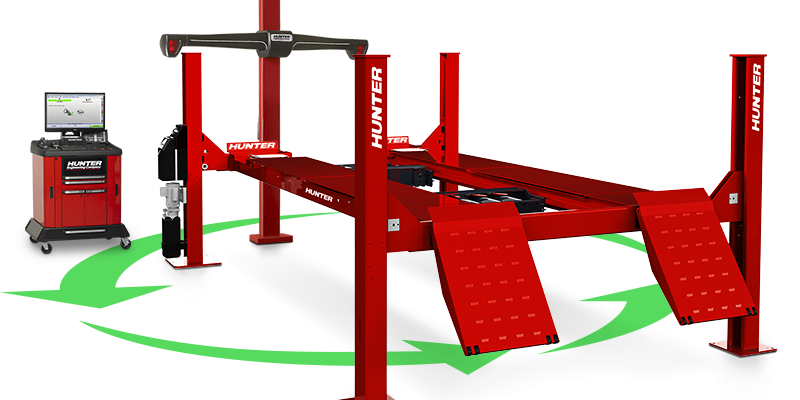

FIA
Fully-Integrated Alignment maximizes productivity
FIA allows WinAlign alignment machines to control lift functions for ultimate productivity. Electronic communication between the lift and the aligner reduce technician effort and potential for errors.
Two editions of FIA are available - PowerSlide and InflationStation.

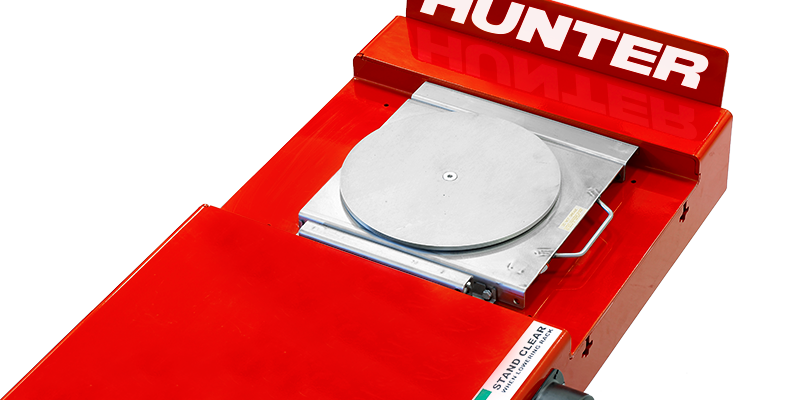

PowerSlide®
PowerSlide® reduces trips around the vehicle
- Locks slipplates and turnplates with the touch of a button or automatically when connected to a WinAlign alignment machine
- Eliminates trips around the car to pin and unpin slipplates
- Avoids wear and tear and extends the life of your turnplates

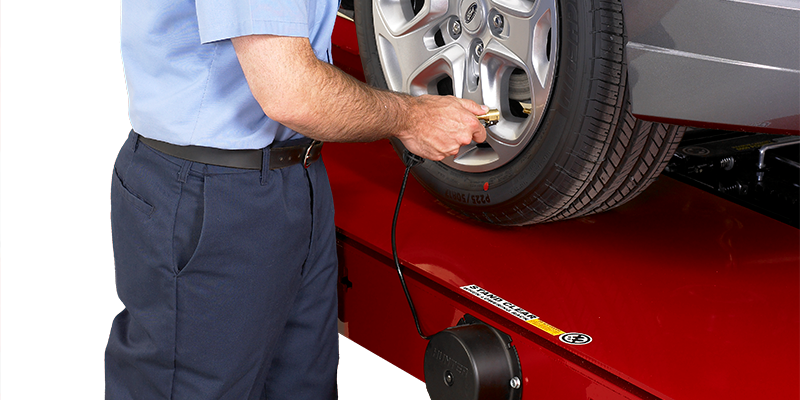

Inflation Station
Inflation Station automatically inflates tires
- Includes all PowerSlide functions
- Automatially inflate all four tires simultaneously
- Wireless record starting and final pressure when connected to a WinAlign alignment machine
- Exclusive hose reels keep hoses safe and work area clear
Optional Harsh Duty
Racks with Hunter's Harsh Duty feature enhanced corrosion protection for those regions with high road salt and brine solution usage.
+
Protective Coating
Zinc-rich primer
Zinc-rich primed, powdercoated and caulked runways and ramps
+
CORROSION-RESISTANT
Stainless Steel Slipplate
Corrosion-resistant stainless steel slipplate tops.
+
CORROSION-RESISTANT
Stainless Steel Turnplates
Corrosion-resistant stainless steel complete turnplates
+
Prevent Seepage
Epoxy-Sealed Joints
Epoxy-sealed joints and seams prevent salt seepage between adjoining pieces of metal
