- 368–622 mm rim diameter
- 100 mm min rim hole diameter
- 1473 mm max tire diameter
- 686 mm max width
- 700 kg max weight
- 9 rpm CW & CCW
- 208-240V, 1ph, 60Hz, 20A
Safe and fast tyre changers for trucks, fleets, tractors and big rigs
Heavy-Duty
Heavy-Duty Tyre Changers
Capable strength meets efficient speed
Whether your need is a fast and safe tyre changer for semi-truck tires, or a tyre machine that will change skidder tyres, Hunter has a model to suit. Hunter's heavy-duty tyre changers support over-the-road truck tyres with none of the fatigue and safety risk of bars and hammers. The TCX645HD heavy-duty tyre changer can do all that, plus handle implement tires up to 228,6 cm (90”) in diameter.
Features at-a-glance
-
Tulip-style wheel clamp
-
Safety-focused controls
-
Roller demounting
-
Standard hook
Hunter Heavy-Duty Tire Changers
/
Product Family at a Glance
TCX635HD
Extra torque, extra speed
TCX645HD
Truck tires to skidders
- 356–1168 mm rim diameter
- 100 mm min rim hole diameter
- 2299 mm max Diameter
- 1067 mm max width
- 997,9 kg max weight
- 10 & 5 rpm CW, CCW
- 230V, 3ph, 60Hz, 26A
TCX660HD
2-speed clamp rotation motor
- 356–1422 mm rim diameter
- 100 mm min rim hole diameter
- 2600 mm max diameter
- 1498 mm max width
- 2500 kg max weight
- 5.25-10.5 rpm
Thomas Tire relies on Hunter to maintain trust with HD and commercial customers
Customers have long relied on Thomas Tire in Asheville, NC to take care of their HD vehicles, says co-owner Sally Thomas. In turn, Thomas relies on Hunter equipment to maintain that trust. “Our dad was always a firm believer in investing in quality, and that’s what we’ve done,” she says.
TCX635HD Heavy Duty Tire Changer
Plenty of power and speed to change even the most difficult HD truck tires easily and safely.
The Hunter TCX635HD Tire Changer
See the easy-to-use features of the Hunter TCX635HD tire changer that help technicians properly service heavy-duty wheel assemblies.
TCX645HD Heavy Duty Tire Changer from Hunter Engineering
TCX645HD Quick Ops-Road Wheels
Watch the process of demounting and mounting road wheels on the Hunter TCX645HD heavy-duty tire changer.
TCX645HD Quick Ops-Skidder Wheels
See how easy it is to properly and safely service skidder wheels on the Hunter TCX645HD heavy-duty tire changer.
TCX645HD Tire Cutter Attachment
Watch how easy it is to remove foam-filled tires for disposal.
TCX635HD Features
Optimized for over-the-road truck tyres
Operator-friendly design
- Low risk - No hammers, no bars, no lifting very heavy tires
- Low service height - Easy to roll on and no fear of tire falling off during demounting
- Optional ramps - Popular "plus" model includes ramps, and mounting bar
Superior wheel accommodation
- Easy match mounting - Rotate tire on rim when needed for the smoothest ride
- Specialty rim friendly - Standard hook can be used to mount and demount challenging tires and rims without fear of damage
- Simple controls - Easy to use levers control all operations in a convenient and safe operator position
- Versatile jaws - Secure small center holes, thick wide-based alloy wheels, centerless wheels, and much more
Powerful tools to assist
- Fast and easy rollers - Most tires can be pushed on and off, no switching tools
- Inner "drop roller" - Speeds service times, never a need to remove to make room
- Hydraulic carriage - Maximum power and fast tool positioning
Tulip-style clamp
Quickly & easily clamp assemblies with no damage to the wheel
All-in-one controls
Houses all user operations, pivots to allow flexibility, and height is adjustable (two positions)
Bead-breaking rollers
Quickly & easily break tire beads with no wheel damage. Drop roller saves time.
Technician safety
The TCX635 functions close to the ground to keep heavy tires at a safe height.
Easily service special assemblies
Use the standard hook attachment to mount and demount tubed or sharp edged wheels, or other more difficult assemblies.
TCX645HD Features
Built for for trucks, tractors, and other heavy-duty equipment
Operator-friendly design
- Mobile controller - Full access to controls when servicing the front or back of large assemblies. (Wireless optional)
- Low risk - Use powerful tools instead of bars and hammers. No lifting of very heavy assemblies
Superior wheel accommodation
- Versatile jaws - Clamp center holes as small as 100 mm (3,94”), or rims as large as 1168 mm (46”)
- Optional skidder clamp - Useful when servicing difficult skidder style double drop center wheels
- Spring loaded hook / disc roller - Mount and demount the toughest tires with minimal risk of rim damage
Convenient functions
- Two speeds - Select high speed for bead loosening or easy assemblies. Use low speed for the tough ones
- Speed carriage - Quickly shuttle the carriage from front to rear of the rim
- On-board storage - Keep standard and optional accessories organized
Tire cutter attachment
Quickly and easily cut apart foam filled tyres for disposal.
Pedestal control unit
Integrated tool storage
Integrated tool storage is conveniently located on the tire changer base, increasing operating efficiency and helping prevent damage and loss.
Tulip-style clamp
Tulip system provides universal, self-centering, standard clamping capacity of 14 to 46 inches. Two-speed chuck rotation operates clockwise and counter-clockwise.
Mount & demount with ease
Tractor, implement and other specialty wheel assemblies are serviced using the same tools and techniques.

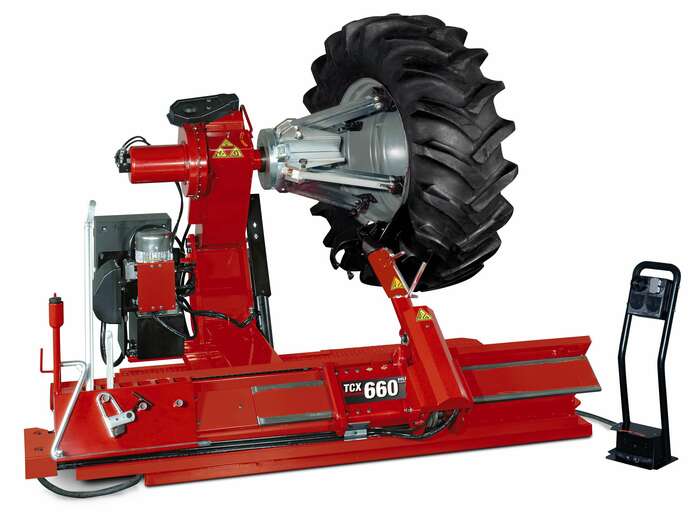

TCX660HD Features
Large capacity for big rigs and heavy-duty equipment
Operator-friendly design
- Mobile controller - Full access to controls when servicing the front or back of large assemblies. (Wireless optional)
- Low risk - Use powerful tools instead of bars and hammers. No lifting of very heavy assemblies
Superior wheel accomodation
- Versatile jaws - Clamp center holes as small as 3.94 in, or rims as large as 46"
- Optional skidder clamp - Useful when servicing difficult skidder style double drop center wheels
- Spring loaded hook / disc roller - Mount and demount the toughest tires with minimal risk of rim damage
Convenient functions
- Two speeds - Select high speed for bead loosening or easy assemblies. Use low speed for the tough ones
- Speed carriage quickly - Shuttle the carriage from front to rear of the rim
- On-board storage - Keep standard and optional accessories organized
Match-mounting truck assemblies provides the smoothest ride
When combined with Hunter's HD Elite™ wheel balancer, the heavy-duty tyre machines allow you to match the stiffest part of the tyre with the lowest spot on the rim to achieve the smoothest possible ride.
Specifications
|
|
|||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gallery
Because of continuing technological advances, features and configurations shown in customer photos may vary.
