Control PowerSlide® and raise/lower lift features from the aligner console
High-capacity alignment lift for commercial vehicles
Heavy-Duty

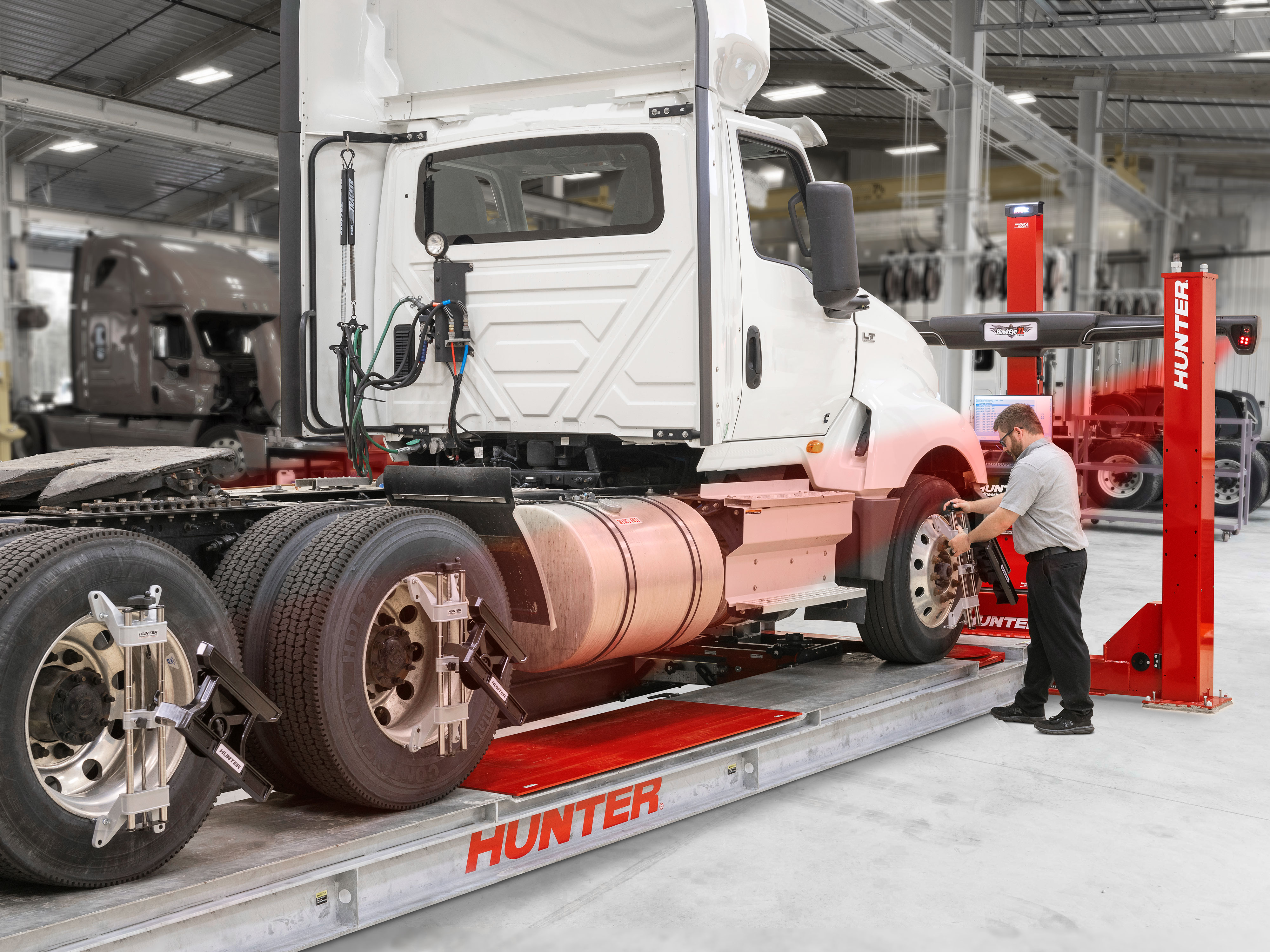

Heavy-Duty Four-Post Truck Lift
High-capacity alignment lift for commercial vehicles
Hunter’s Heavy-Duty Four-Post semi and truck lift features a 35,000-lb. lifting capacity and 300-in. alignment wheelbase capability. The galvanized runways offer the best in corrosion protection for your investment.
The lift comes alignment ready with turnplate pockets and slipplates for servicing standard vehicles. It can be equipped with optional Powerslide® and FIA turnplates and slipplates saving time by eliminating trips around the truck when locking and unlocking plates. The aligner can be connected to control all lock and unlock functions automatically.
Optional 20,000lb jacks and LED AlignLights can be added to make service easier and safer.
Features at-a-glance
-
Galvanized runways
-
PowerSlide-capable turnplates and slipplates
-
Powerful 20,000-lb. jacks (optional)
-
LED lighting (optional)
Specifications at-a-glance
-
35,000 lbs.Capacity
-
30 in.Runway width
-
300 in.Alignment wheelbase
-
320 in.Service wheelbase
Hunter HD Four-Post Lift
/
Product at-a-glance
- 35,000-lb. Capacity
- Galvanized 30-in. wide runways
- 300-in. Alignment wheelbase
- 320-in. Service wheelbase
- Built-in slipplates and turnplates for universal alignment capability
Thomas Tire relies on Hunter to maintain trust with HD and commercial customers
Customers have long relied on Thomas Tire in Asheville, NC to take care of their HD vehicles, says co-owner Sally Thomas. In turn, Thomas relies on Hunter equipment to maintain that trust. “Our dad was always a firm believer in investing in quality, and that’s what we’ve done,” she says.

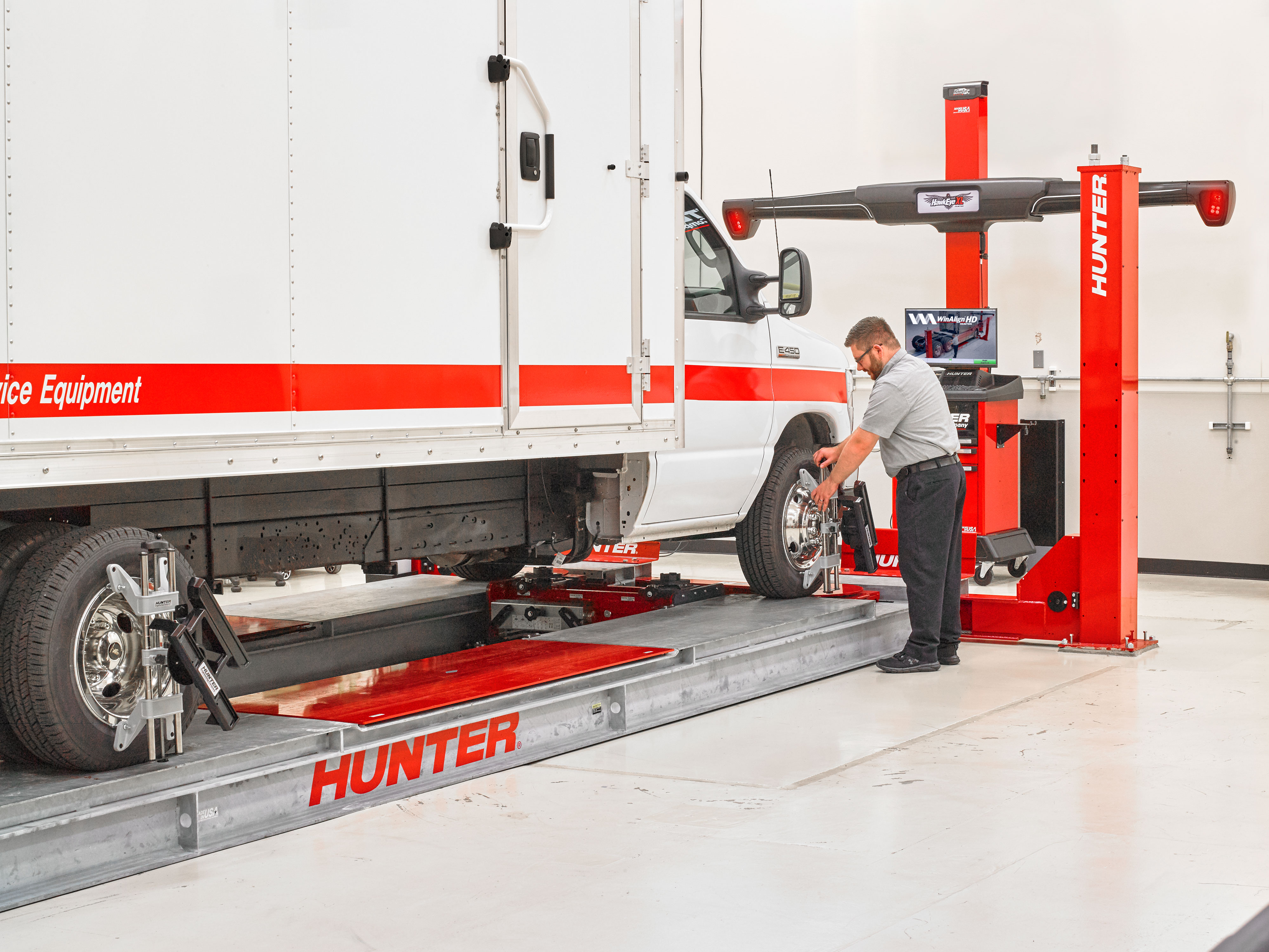

Big or small, align them all with HawkEye XL
Watch the HawkEye XL Hype Video.
L494HD Four-Post Lift
Hunter's premier heavy-duty four-post lift can help you and your shop to complete accurate and timely alignments with ease.
HD Four-Post Lift Features
1
2
3
4
Wide runways
30-in. extra-wide galvanized runways accommodate all vehicles. Align up to 300-in. wheelbases (320-in. service wheelbase).
High-capacity
Heavy-weight 35,000-lb. lifting capacity is best-in-class.
Jacks
Include optional one or two 20,000-lb. capacity hydraulic cylinder jacks to easily raise vehicles off runways.
Integrated controls
Convenient console featuring push-button functions give technicians full-control.
1
2
3
4
Locks & pulleys
High-strength galvanized cables and 7 lock positions provide long, reliable life.
Louvered approach ramps
High-traction design prevents wheel spin – better than diamond plate or abrasive finish.
Tough umbilical covering
Protective cord covering prevents damage to air and hydraulic lines.
Built & installed locally
Designed & built in the USA, and installed locally by Hunter's highly-qualified service team.
Optional features
Fully-Integrated Alignment (FIA)
Optional
PowerSlide®
Optional
Eliminate struggle with turnplate pins. Turnplates and slipplates lock and unlock at the right time (with FIA).
AlignLights
Optional
See where you work. Lights shut off automatically when rack is lowered and turn on when raised.
Light-duty application
Hunter’s Heavy-Duty Four-Post comes alignment ready with turnplate pockets and slipplates for easily servicing standard vehicles as well.
Invest in the four strongest posts in undertruck service.
SPECIFICATIONS
|
|
|||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gallery
Because of continuing technological advances, features and configurations shown in customer photos may vary.
