- Fastens to tires with 21 to 40 in. outside dimension
- Includes four tire clamps with protective rim sleeves
- Ideal for wheels without rim lips or with limited space between tire and rim
Fast results with quick setup time

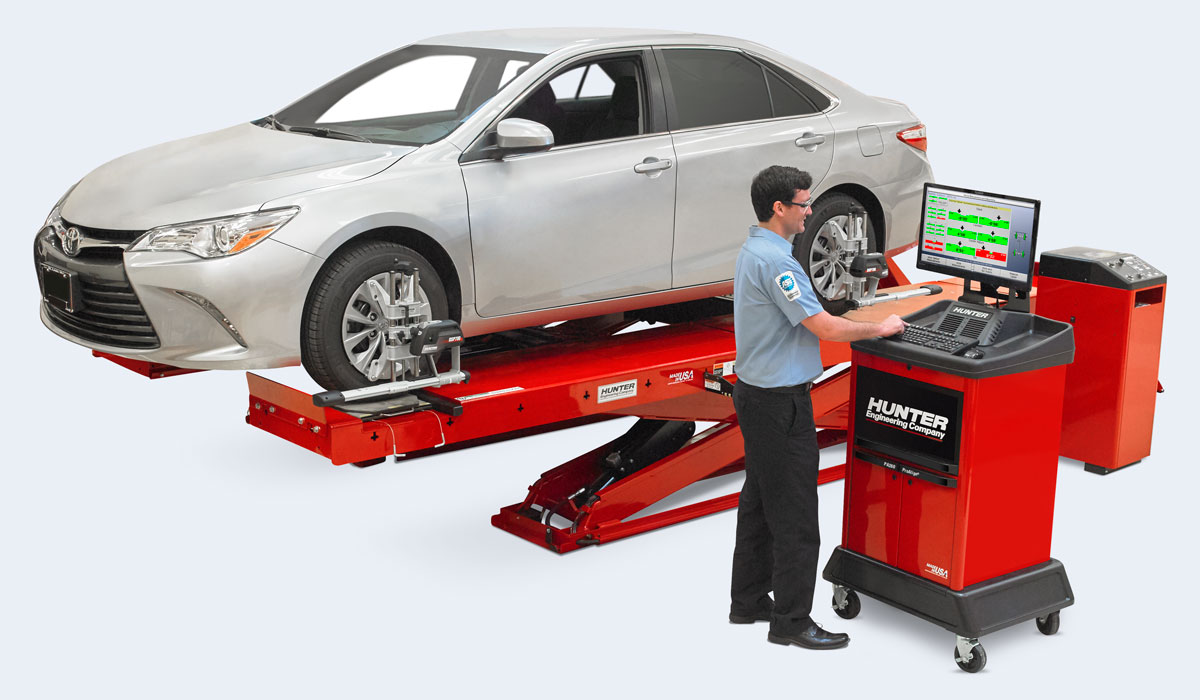

Alignment System
Standard Alignment Machines
Fast results with quick setup time
Hunter offers alignment systems with simple operation and low cost of ownership. The standard alignment machines offer quick and efficient alignment reading through powerful HawkEye® imaging technology and WinAlign® Lite software.
Features at-a-glance
-
High-resolution cameras
-
Capable WinAlign® Lite software
-
High durability, high uptime
-
Comprehensive vehicle coverage
Specifications at-a-glance
-
2 minuteSetup time
-
10-24.5 in.Wheel diameter range standard
Hunter Standard Alignment
/
Just how easy is an alignment with Hunter?
1
Select a vehicle
2
Measure angles
3
Make adjustments
4
Present results

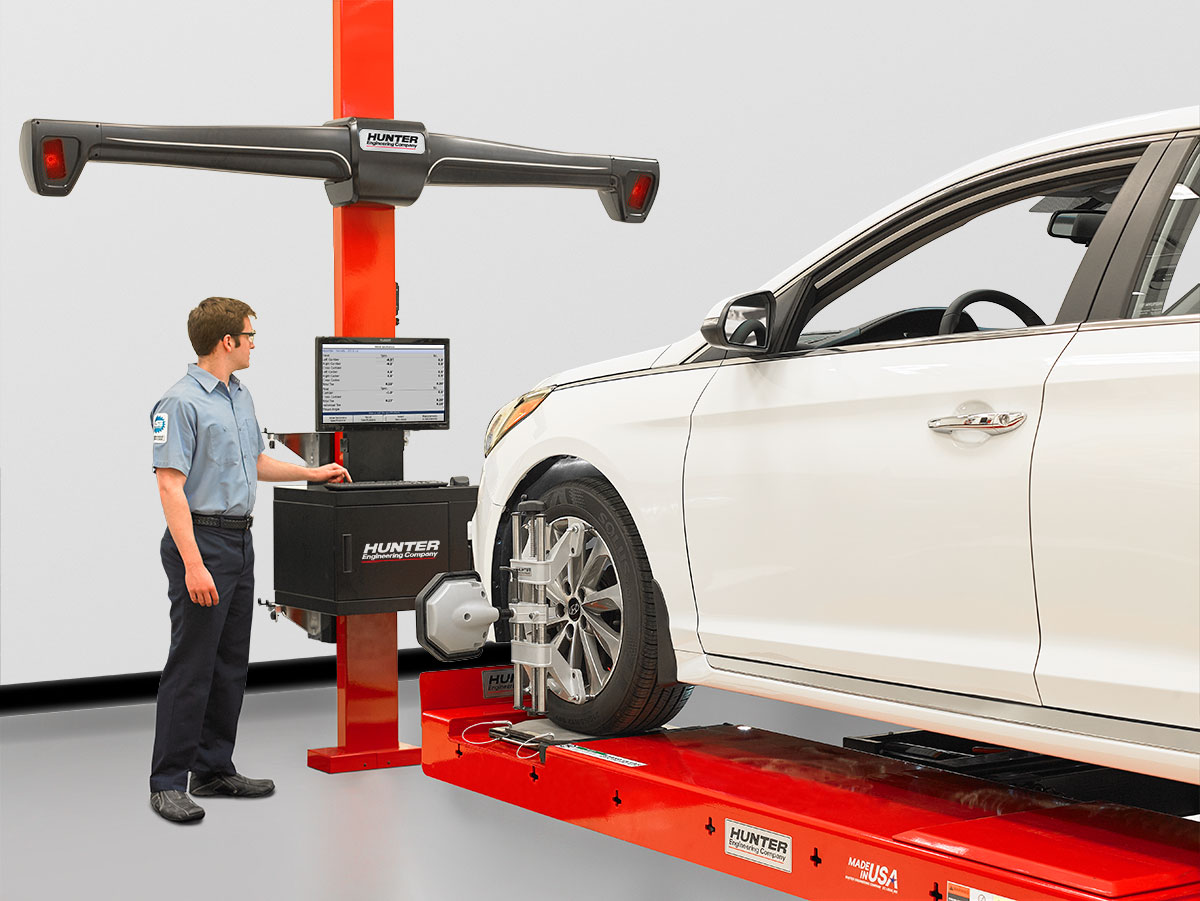

Select a vehicle
- Recall specifications

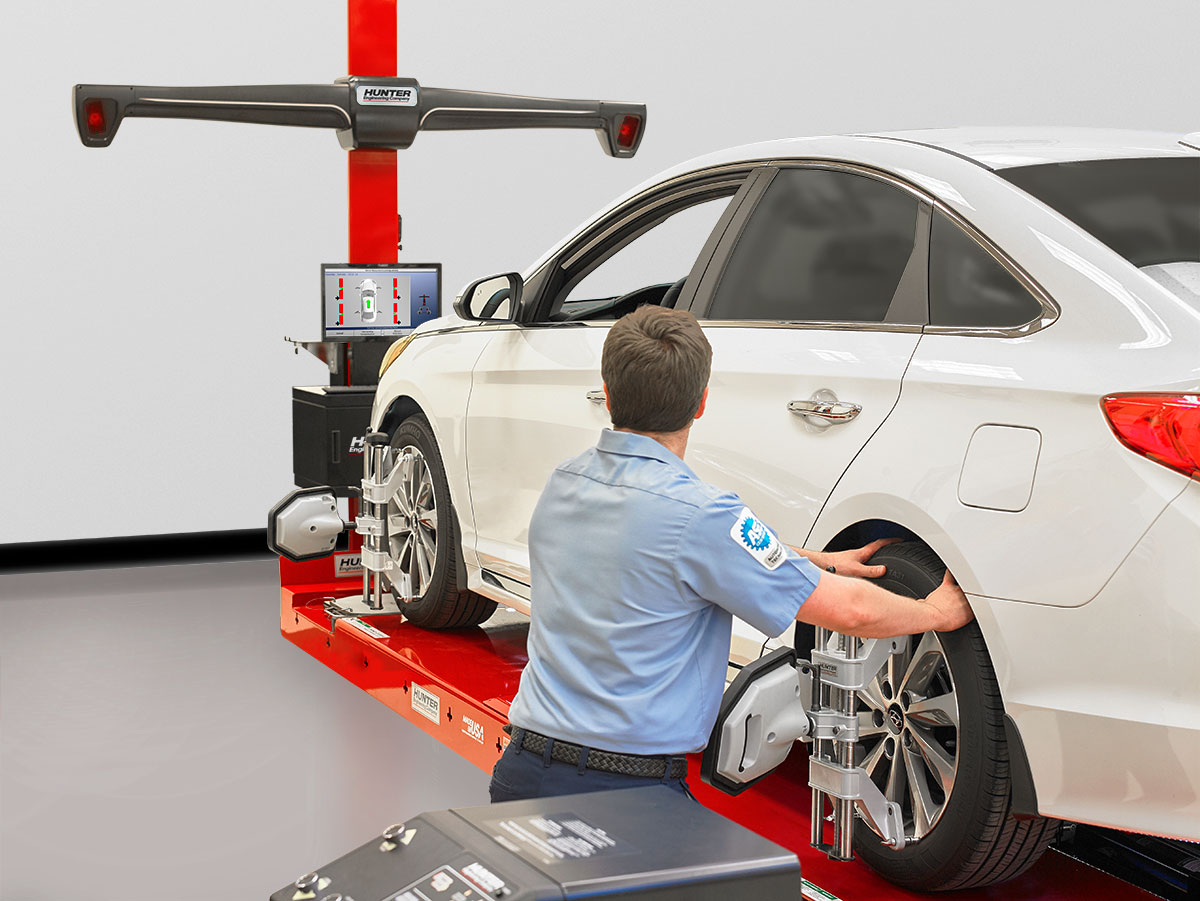

Measure angles
- Install targets
- Capture measurements
- Review "before" results

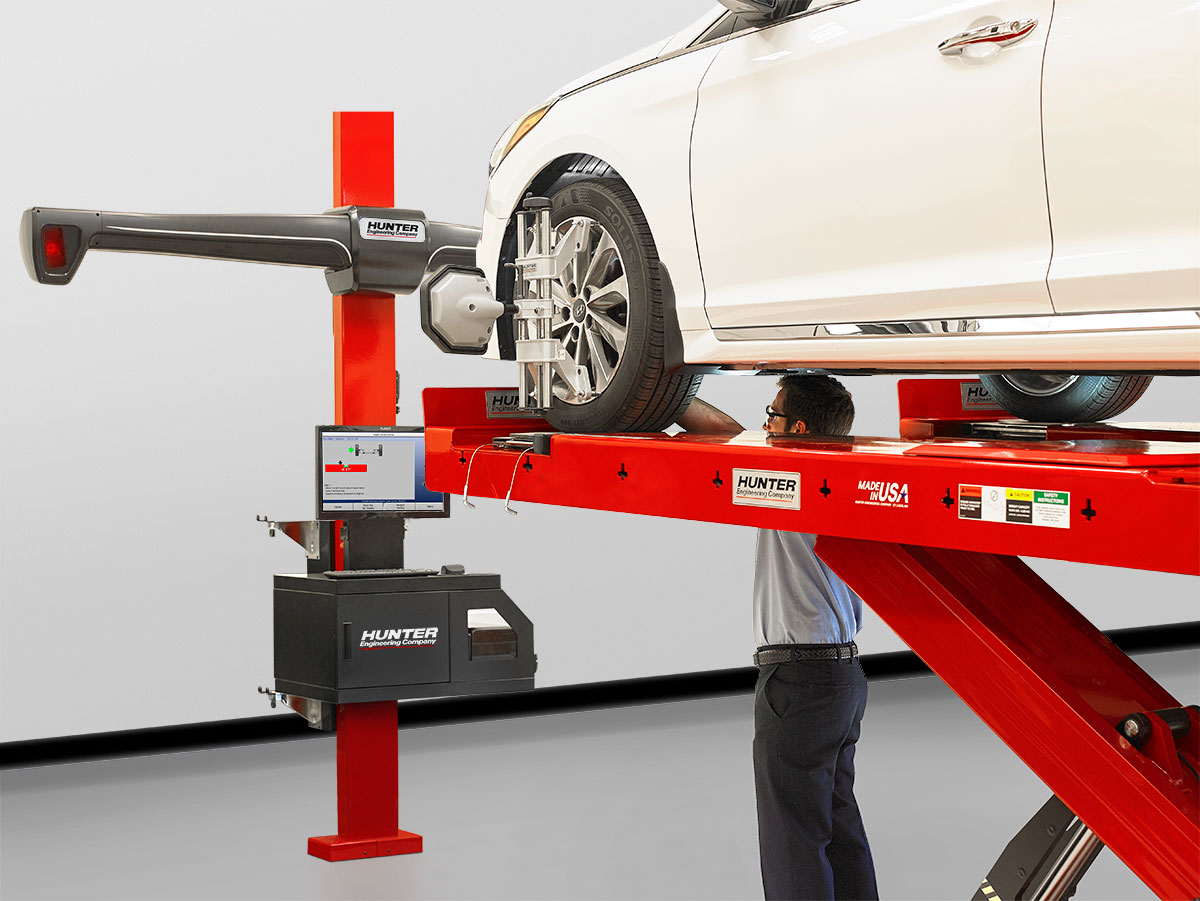

Make adjustments
- Follow the adjustment instructions
- Print before-and-after results

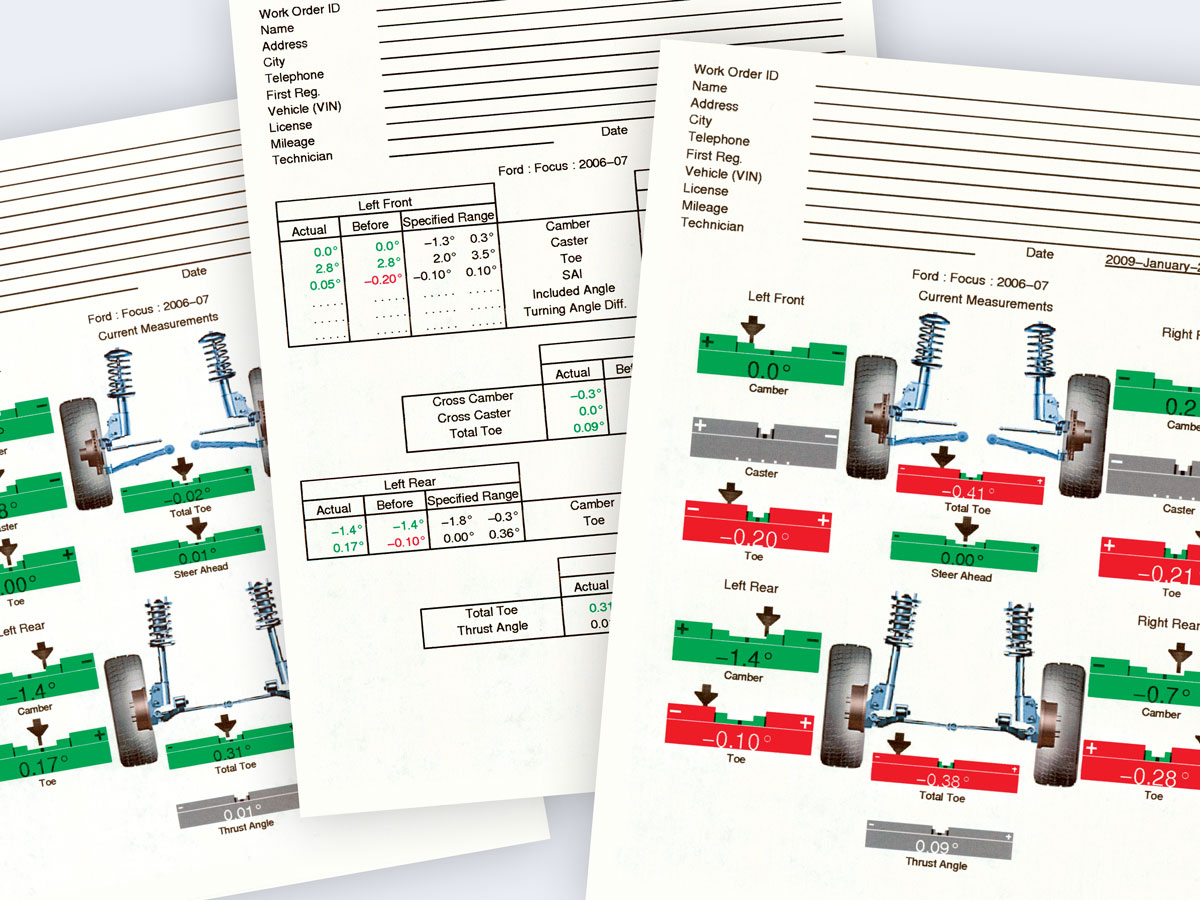

Present results
- Sell more alignments
- Generate greater profits
Having trouble deciding?
We have listed some things to consider when choosing an alignment machine.
Patented and industry-proven alignment features
Save your technicians time and effort with live bar graph measurements, WinToe®, Power Tools, and more.
See all of the features
WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder.
Power tools
Advanced adjustments made easy with built-in Power Tools to guide the way for control arms, bushings, shims, and wheel off adjustments.
Soundguide
WinAlign® provides auditory indicators that sound during the adjustment process for when the console screen is not visible.
Wheelbase and Track Width Measurements
Get a full picture of the vehicle's wheelbase and track width measurements.
Vehicle Symmetry Measurements
See accurate wheelbase setbacks and track width offsets to properly diagnose and align vehicles.
Greater versatility helps service more vehicles

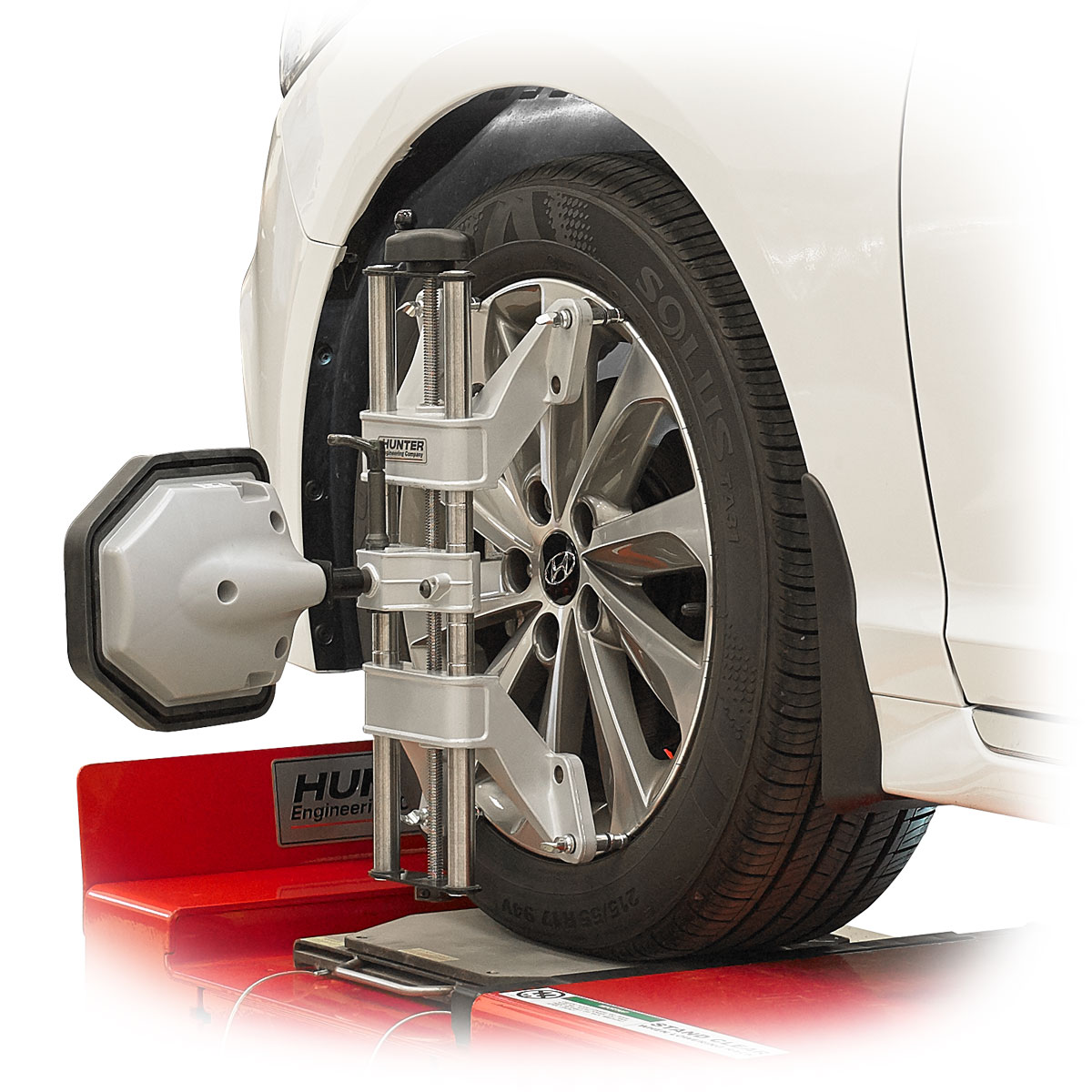

Hunter's innovative and trusted self-centering wheel adaptors ensure proper centering and durability.
- Easy to use
- Lightweight, durable construction
- Fits a wide range of wheel configurations and sizes
Adaptable rim studs
Works with specialty rims, run flat tires, and rim guard tires
Sturdy design
Durable, lightweight design provides rigidity and stability
Extended range
Coverage from 10 to 24.5 inches

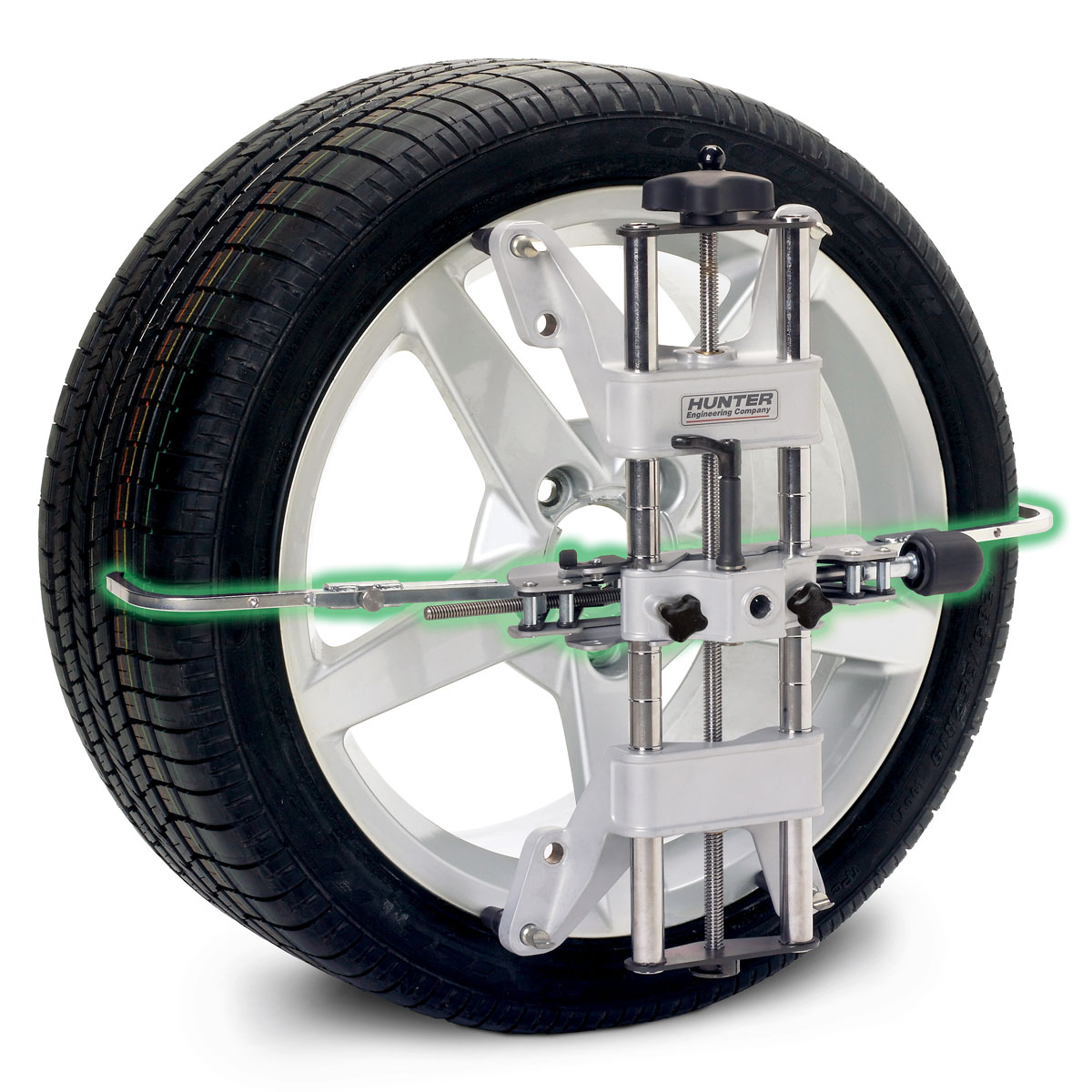

Tire Grip
Fits difficult wheels

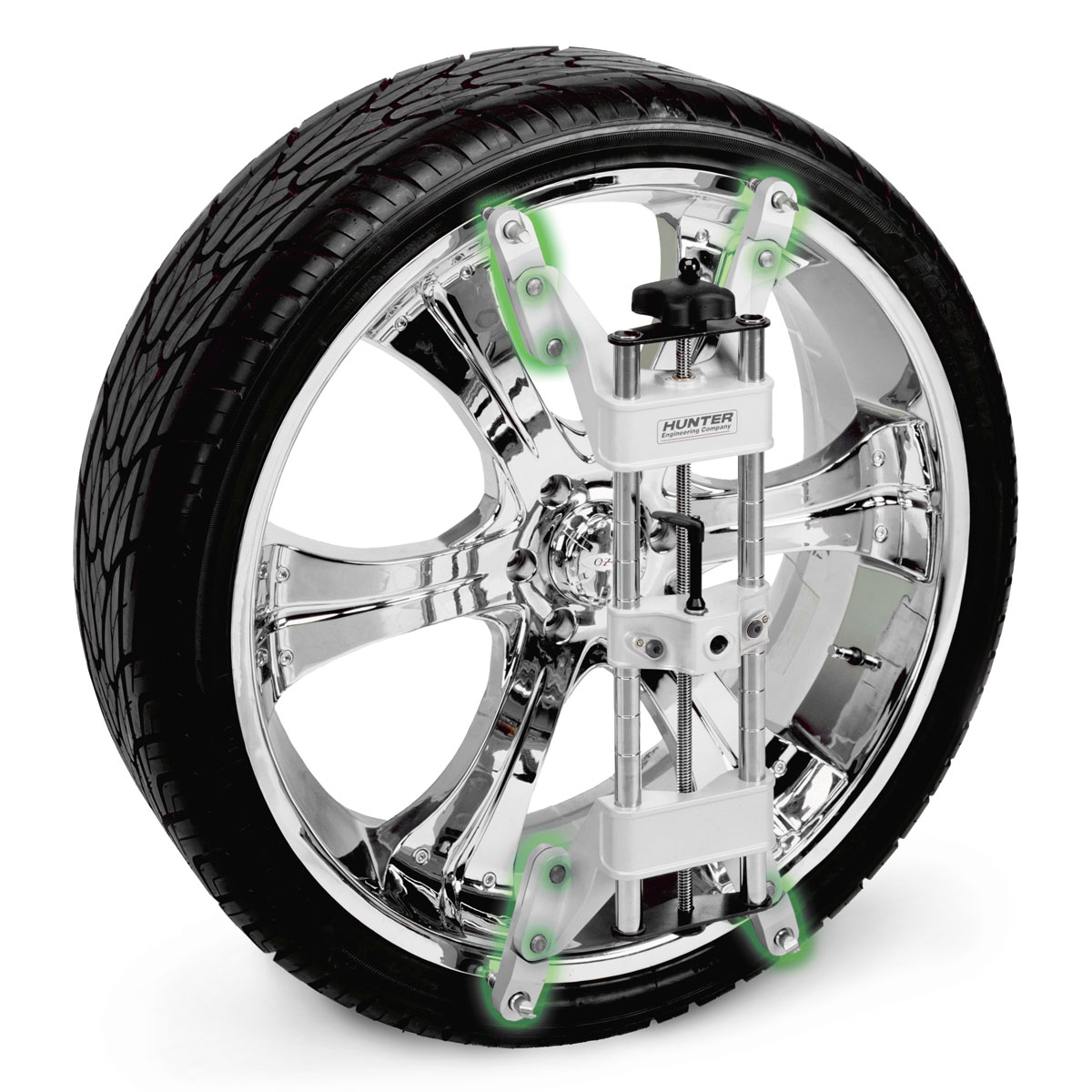

Extensions
Expand coverage
- Expands adaptor range up to 28 in.
- Includes 16 adaptor extensions, 4 for each adaptor

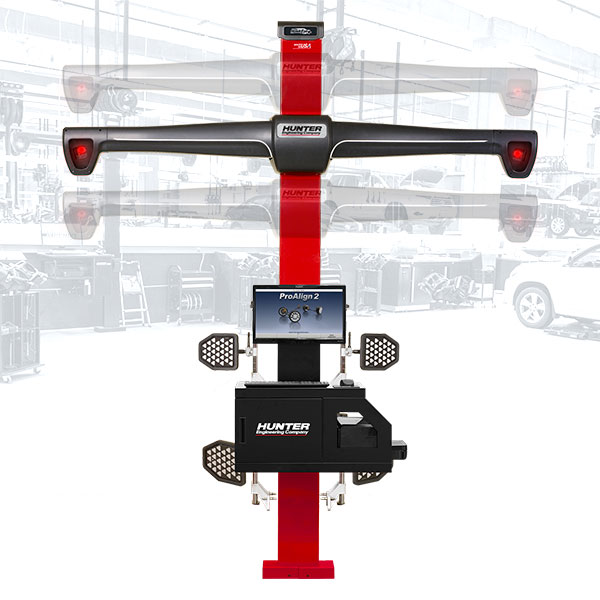

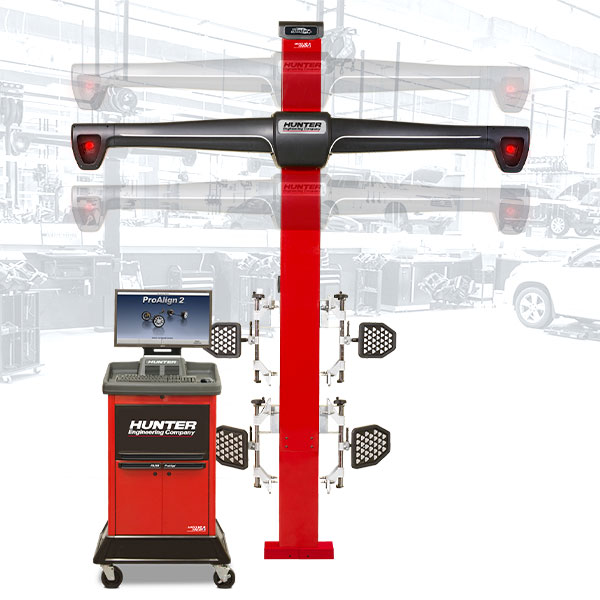

Set up the right alignment configuration for your shop
Offer bay-to-bay flexibility with completely mobile cabinet and camera sensors or fixed-column sensors with manual adjustable height.
Each configuration comes with self-centering wheel adaptors.
Hunter's 3-Year Warranty
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
Get more work done with less hassle using Fully Integrated Alignment (FIA)
Automatic locking and unlock functions allow your technicians to focus more on the alignments.
Precision Cameras
High-resolution cameras measure wheels automatically once the fourth target is installed.
WinAlign® Console
Patented
Centralized system that guides the technician through the alignment process.
PowerSlide® System
Patented
Slipplates and turnplates automatically lock and unlock at appropriate times.
Inflation Station
Patented
Automatically inflates all four tires simultaneously while recording final pressure.
AlignLights
Illuminate your work area with automatic on/off during lift functions.
Options and Accessories
Enhance your alignment process with these optional add-ons.
See options
Handheld Remote
Save time and effort with remote control around the shop bay. (Standard)
VIN Barcode Reader
Scan vehicle VIN for instant specification selection on the aligner.
CodeLink®
Perform steering system resets for supported vehicles. (Optional)
Remote Indicator
See adjustments live when working under the vehicle rear.
Handheld inclinometer
Easily obtain ride height based alignment specifications for BMWs, Mercedes-Benz, Peugeot, and more with built-in calculations.
Your shop deserves the fastest, easiest system
Get 70-second alignment measurements with pinpoint accuracy with HawkEye Elite® — the most powerful wheel alignment machine on the market today.
Order Hunter alignment system accessories online
Order accessories for Hunter aligners 24/7 and keep your shop producing!
