Maximum productivity, minimum space



Hunter Scissor Alignment Lifts

technician servicing white truck under alignment lift rack
flush mount harsh duty alignment rack
technician servicing truck on alignment rack
alignment rack rx console
technician servicing white truck under alignment lift rack
flush mount harsh duty alignment rack
technician servicing truck on alignment rack
alignment rack rx console
Alignment Rack

Scissor Alignment Lifts

Maximum productivity, minimum space

Hunter's scissor lift family offers four capacities and several wheelbase lengths to meet virtually any need. Hunter scissor lift racks feature low drive on heights for all models, or even popular flush mount configurations. Add Inflation Station, PowerSlide, and AlignLight options to really ramp up productivity.

New harsh-duty options available to for high road salt/brine use applications

Features at-a-glance

  • Open-front and rear access
  • Stainless steel turnplates standard
  • Built-in slip plates standard
  • Two moveable worksteps standard

Specifications at-a-glance

  • 10-16,000 lb
    Capacities available
  • 2 Swing jacks standard
    Technician Favorite
  • 24" & 26"
    Wide runways
  • 162"-182"
    Alignment Wheelbase

Product family at-a-glance

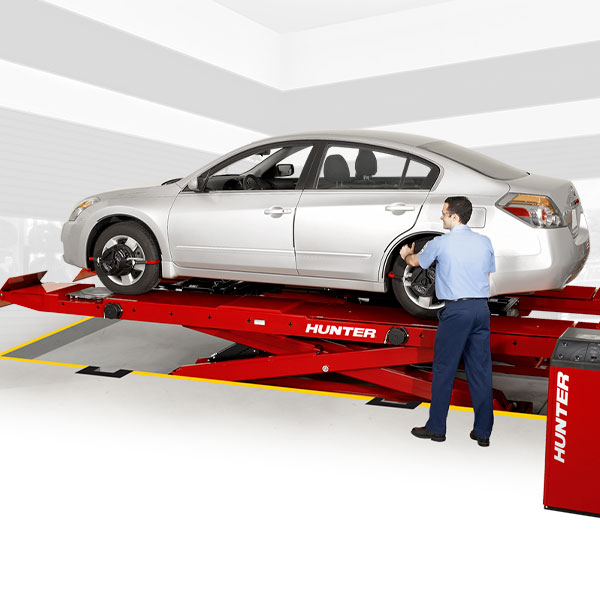

RX16

16,000 lb Capacity
  • 16,000 lb capacity
  • 2 x 9,000 lb capacity jacks
  • 182" 2-wheel alignment wheelbase
  • Flush mount only
  • PowerSlide and Inflation Station capable

RX14

14,000 lb Capacity
  • 14,000 lb capacity
  • 2 x 9,000 lb capacity jacks
  • 182" 2-wheel alignment wheelbase
  • Surface mount only
  • PowerSlide and Inflation Station capable

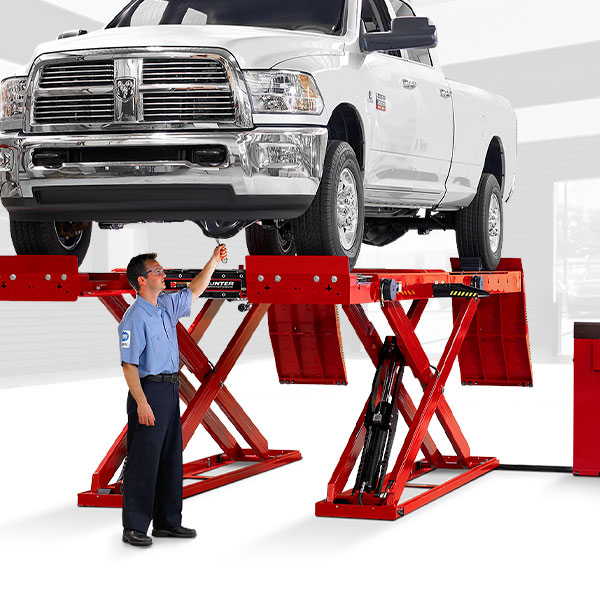

RX12

12,000 lb Capacity
  • 12,000 lb capacity
  • 2 x 6,000 lb capacity jacks
  • 162"-179" 2-wheel alignment wheelbase
  • Flush or surface mount
  • PowerSlide and Inflation Station capable

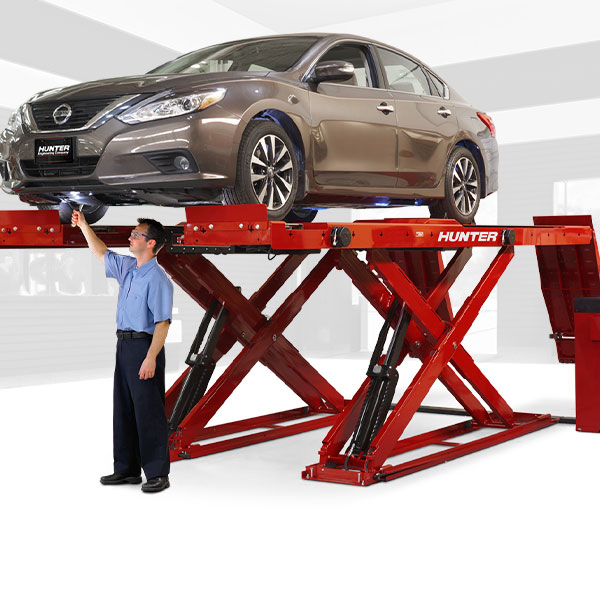

RX10

10,000 lb Capacity
  • 10,000 lb capacity
  • 2 x 6,000 lb capacity jacks
  • 162"-179" 2-wheel alginment wheelbase
  • Flush or surface mount
  • PowerSlide and Inflation Station capable

See them in action





    FIA Tab Icon

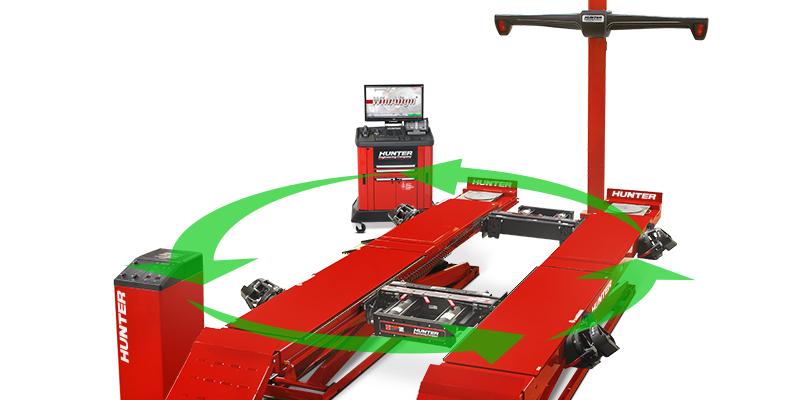

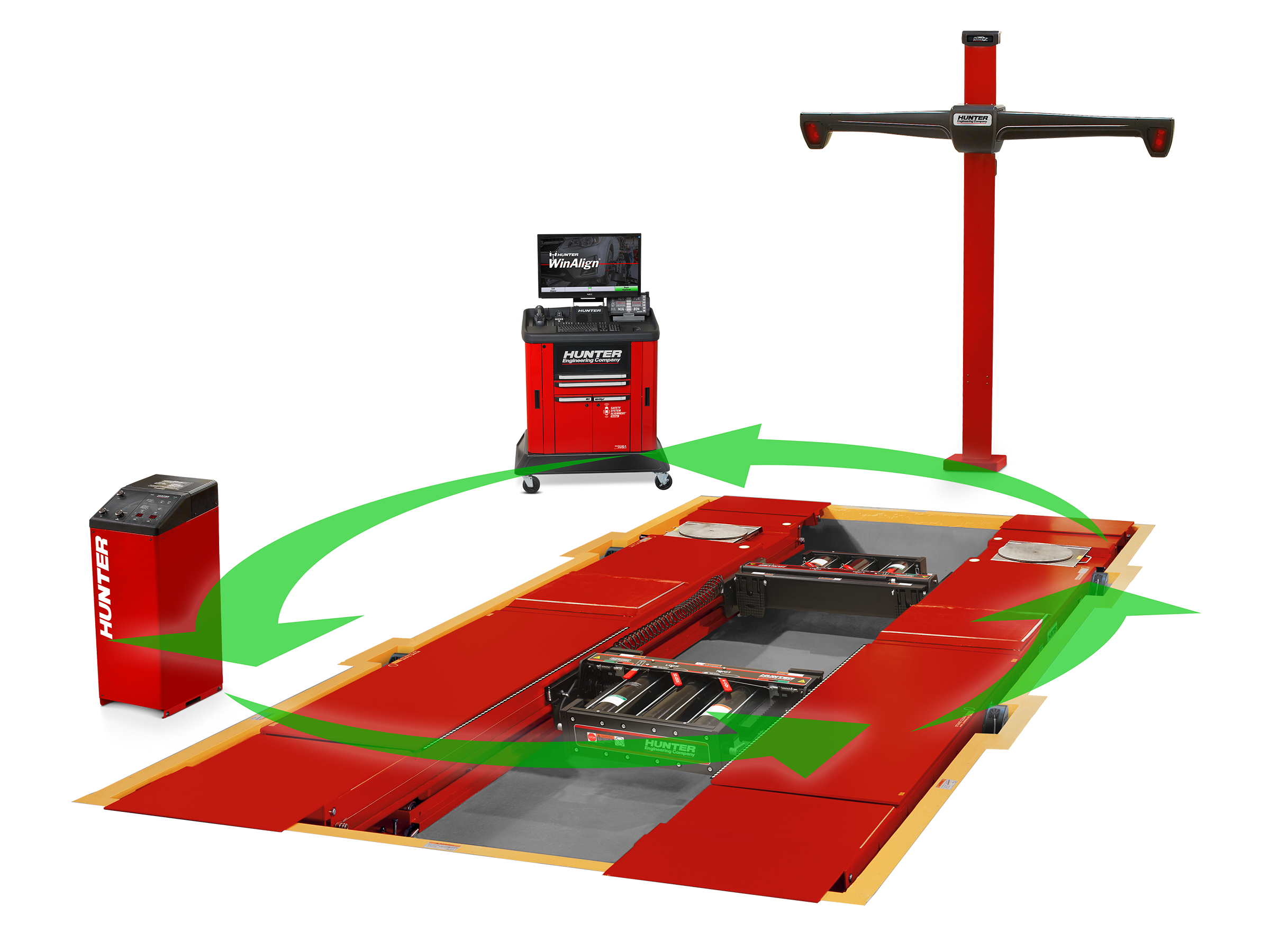

    FIA
    PowerSlide® Tab Icon
    PowerSlide®
    Inflation Station Tab Icon

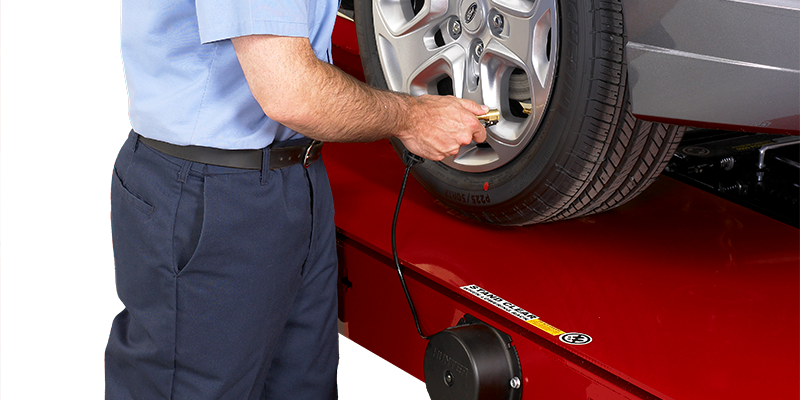

    Inflation Station

    Set aside a bit of space in your shop for productivity.

    Contact your local Hunter representative to get a free quote.





    Features

    Flush-Mounting

    Eliminate ground clearance concerns, and give your workspace a premium appearance.

    Extra-Wide Runways

    Drive-on ease, up to vehicles 92" wide, wheelbase choices allow for fits for every shop.

    Fast Descent

    Reduced lowering time by 50% with soft landing ensures safety.

    Swing Air Jack Equipped

    Two high-capacity swing air jacks come equipped—an industry standard with unmatched height, reach and durability.





    Built In Slip Plates

    88" to 158" long for 4-wheel alignments on any vehicle.

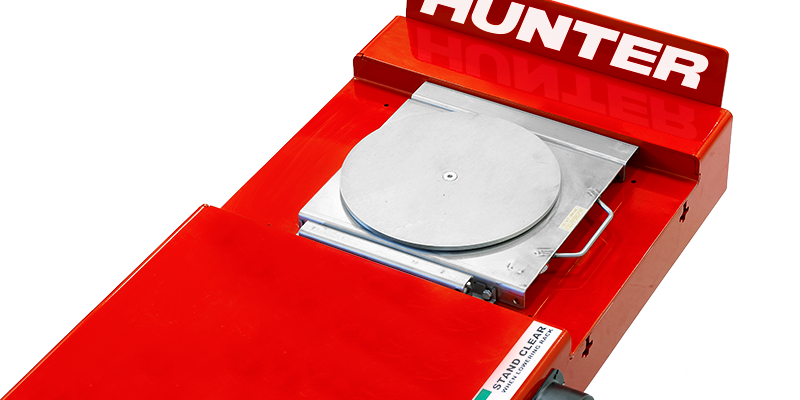

    Stainless Steel Turnplates

    Stainless Steel Turnplates Standard, for a lifetime of easy and accurate alignments.

    Louvered Approach Ramps

    High traction prevents wheel spin. Better than diamond plat or abrasive finish.

    Sixteen Position Locks

    Fine mesh locks insure levelness and safety.

    Hydraulic Safety Fuses

    Instantly shutdown in event of hose failure





    Electronic Level Control

    Keeps runways level at all time shuts down with obstruction

    Optional Alignlights

    See where you work. Lights shut off automatically when rack is lowered, light when raised.

    Air Line Kit

    Air supply to jacks and auxiliary ports standard.

    Two Movable Worksteps

    Sturdy, lightweight and lock into multiple convenient locations (not suitable for flush lifts).





    Optional Harsh Duty

    Racks with Hunter's Harsh Duty feature enhanced corrosion protection for those regions with high road salt and brine solution usage.


    +
    Zinc-rich primer

    Zinc-rich primer on runways, ramps and bases provide a second layer of protection

    +
    Stainless Steel Slipplate Tops

    Corrosion-resistant stainless steel slipplate tops and complete turnplates

    +
    Epoxy-Sealed Joints

    Epoxy-sealed joints and seams prevent salt seepage between adjoining pieces of metal

    +
    Polymer Components

    Polymer slipplate balls and retainers will not corrode

    +
    Threshold Cover

    Pre-galvanized and powder coated threshold cover





    Send a message to your local Hunter representative to receive a free pricing quote or product demo.





    Specifications





    Your local Hunter service representative can answer questions, help with equipment operation and provide on-site training.

    Having trouble deciding?

    Here are some tips

    We have listed some things to consider when choosing an alignment rack.



    See them here

    See other shops using them

    Are you ready to reach new levels?

    Contact your local Hunter representative to get a free quote.









    Explore further

    HawkEye Elite®

    Alignment System

    Four precision cameras measure each wheel using Hunter’s patented QuickGrip® adaptors.

    Built in the USA

    Family owned, goal-driven

    Expert assembly goes into each alignment system, alignment console, tire changer, balancer, brake lathe and other components.

    Hunter service

    Largest in the industry

    Hunter deploys the largest service force of highly-qualified representatives in the industry.
