Easy alignment service for the heaviest vehicles


Heavy-Duty

Heavy-Duty Pit Racks

Servicing heavy-duty trucks should not be hard.

Hunter's Heavy-Duty Pit Racks offer ease of vehicle access in a high-capacity, robust construction. Choose from two different runway length models and add optional PowerSlide® slipplate functionality.

  • Optional deep center for stand-up adjustments
  • Walk-around layout saves time raising or lowering
  • Jack options available for heavy vehicles
  • Designed & built in the USA

  • 30 in.
    Runway width
  • 60,000 lbs.
    Runway capacity
  • 30 in.
    Main pit depth
  • 360 in. and 226 in.
    Runway length options





Hunter Heavy-Duty Pit Racks

/





Product family at a glance

P493HD

Extended runway length

Optimal for very heavy vehicles like dump trucks or concrete pumpers

  • 60,000-lb. runway capacity
  • Galvanized 30-in.-wide runways
  • 360-in. runway length
  • Built-in PowerSlide® slipplates come standard
  • Optional PowerSlide® turnplates add alignment capability

Optional T-Pit and rolling jacks shown

P492HD

Space-saving design
  • 60,000-lb. runway capacity
  • Galvanized 30-in.-wide runways
  • 226-in. runway length
  • Built-in PowerSlide® slipplates come standard
  • Optional PowerSlide® turnplates add alignment capability





NEW

Optional T-Pit extension

Easily access the rear underside of the vehicle. Available in modular 10 ft. sections with no limit to the number of sections.

Shown with two optional jacks. Note that jack can not pass from runway to T-Pit.





NEW

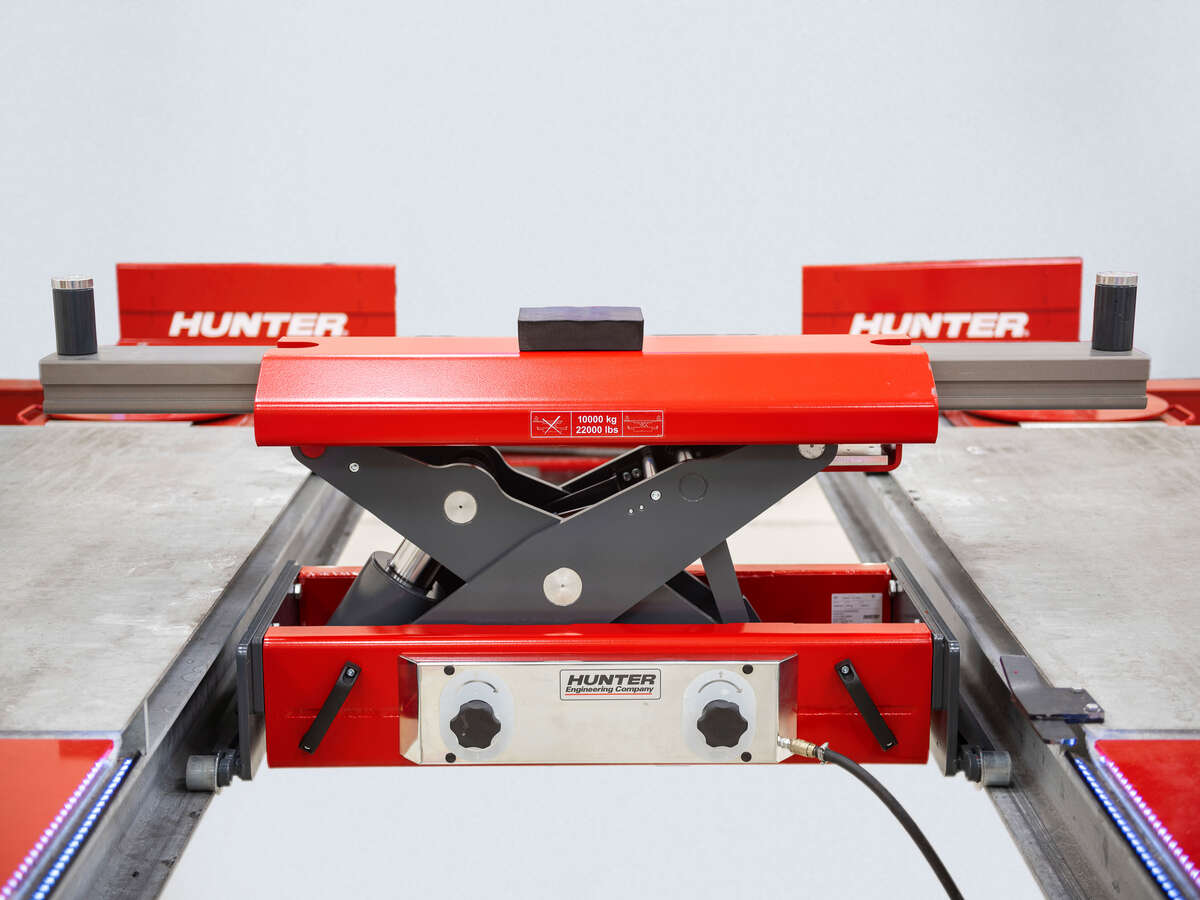

Optional 22,000-lb. capacity scissor jack

The new jack option has a wide 63-in. reach and is ideal for independent suspension lifting and solid axles.





Send a message to your local Hunter business consultant to schedule a free on-site demo.

This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use





Heavy-duty pit rack features


1
2
3
4

Wide Runways

30-in. extra-wide galvanized runways accommodate all vehicles. Align up to 300-in. wheelbases (320-in. service wheelbase).

High-capacity

Heavy-weight runway capacity of 60,000 lbs. is best in class. Longer, heavier axles have unlimited weight capacity when supported by concrete apron.

Unlimited Wheelbase

Longer vehicles can be serviced with rearmost axles on concrete apron. Your facility defines the limits, not the rack.

Built & installed locally

Designed & built in the USA, and installed locally by Hunter's highly-qualified service team.





1
2
3
4

22,000-lb. jacks

Optional 22,000-lb. capacity scissor jack has a wide 63-in. reach and is ideal for independent suspension lifting and solid axles.

20,000-lb. jacks

Optional 20,000-lb. capacity direct acting jack is ideal for solid axle vehicle lifting.

PowerSlide®

Eliminate struggle with turnplate pins. Turnplates and slipplates lock and unlock at the right time (with FIA).

Turnplates

Optional PowerSlide® turnplates add productivity by allowing aligner control of turnplate locking and unlocking.
