Hunter WinAlign® HD Alignment Machine

Perform fast and accurate multi-axle truck alignments

Quickly diagnose tire wear conditions

Alignment readings in just three minutes

Rolling compensation with no jacking required

Hunter WinAlign® HD

Faster setup, faster results

3-axle alignment readings in 3 minutes

Minimal setup time

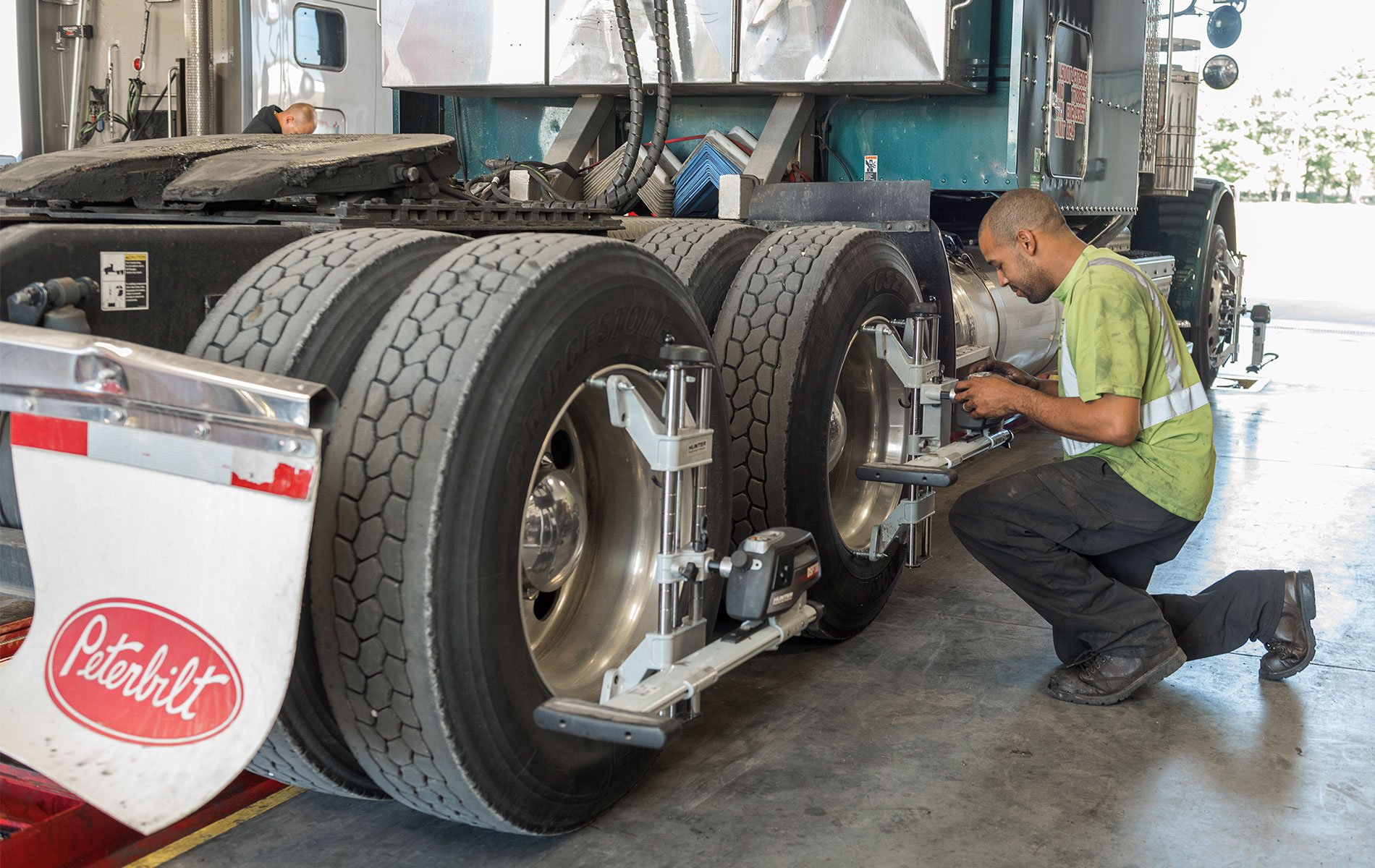

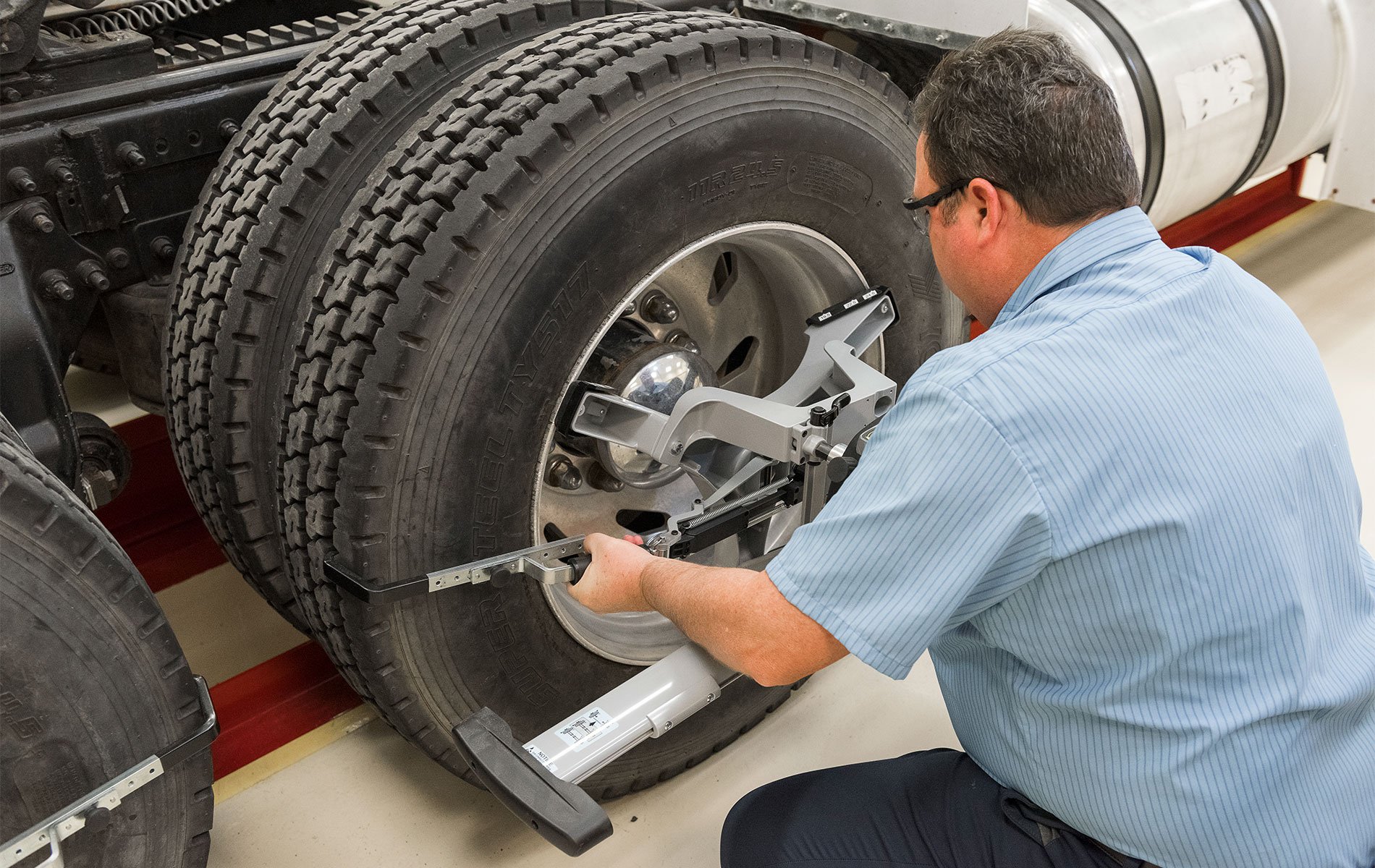

HD QuickGrip® Adaptors allow for fast installation and no metal-to metal contact.

The fastest procedure

Hunter can capture heavy-duty wheel alignment readings in three minutes.

Fast printouts

Easy-to-understand printouts help sell service.





DSP760T Sensors

Hunter's DSP760T heavy-duty alignment sensors reduce setup time and provide accurate alignment readings.

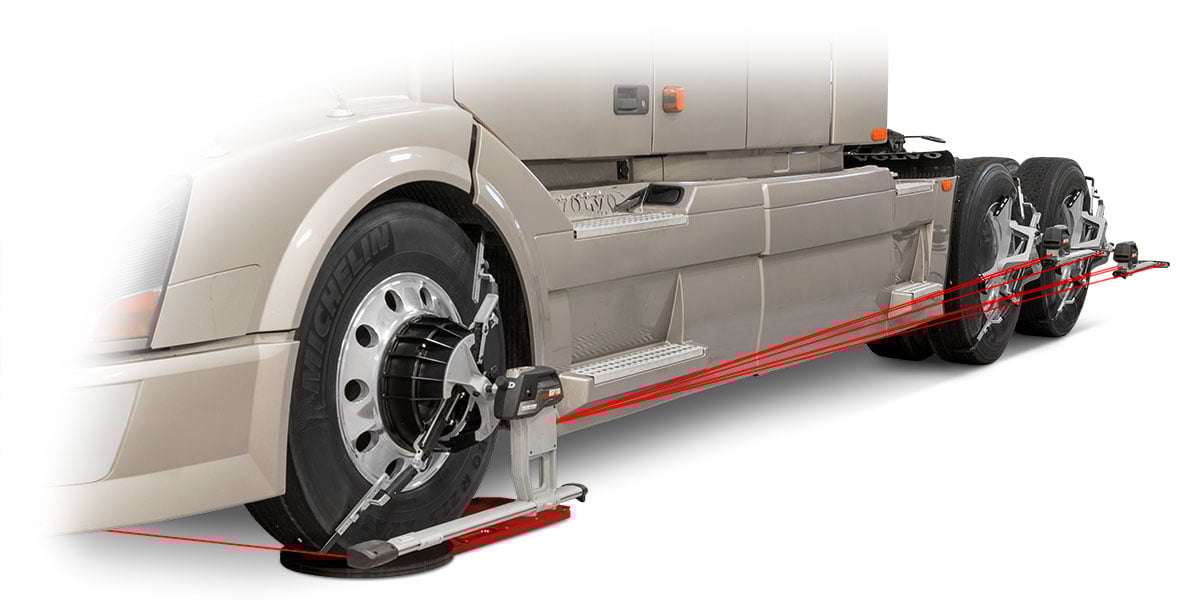

See all six sensors live to measure alignment angles and diagnose tire wear conditions.

Shown with QuickGrip® adaptors





QuickGrip® adaptors

  • Fast installation
  • No metal-to-metal contact
  • 2.5 minute inspection using Quick Check® Heavy Duty spec
  • No additional software or hardware required

Patented, Optional

Rugged design

  • Lightweight & durable
  • Cordless operation
  • Hot-swapable batteries

Trailer alignment

  • Align without unhooking from tractor
  • Align using optional kingpin adaptor without tractor
  • Accurate to 600 inches

Patent pending

Self-Centering Adaptors

  • High versatility for trucks and buses with low-hanging bumpers or air dams
  • Fits wheels 15 to 28 inches in diameter

Standard







Make rolling compensation easy

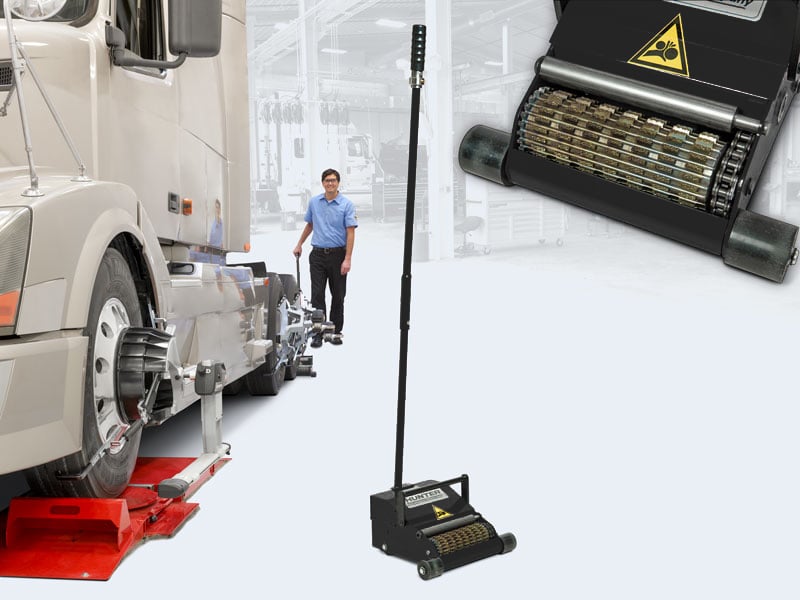

Hunter's truck pusher allows technicians to effortlessly move the truck from the rear axle for rolling compensation.

  • Small & convenient for technicians
  • Powerful motor with rechargeable battery
  • Double as wheel chock

Standard on WT600, Patent pending

Having trouble deciding?

Here are some tips

We have listed some things to consider when choosing an alignment machine.



See them here

Send a message to your local Hunter representative to receive a free pricing quote or product demo.





Skip steps and hassles that other systems require.


No cables

Cordless sensor operation with hot-swapable batteries keeps the work area free of tripping hazards.


No jacking

Short rolling compensation allows technicians to compensate all sensors at once.


No turnplate pins

Lock or unlock all PowerSlide® turnplates from the console.

Save valuable shop time

  1. Position vehicle
  2. Select vehicle
  3. Mount sensors
  4. Roll forward to compensate
  5. Steer caster

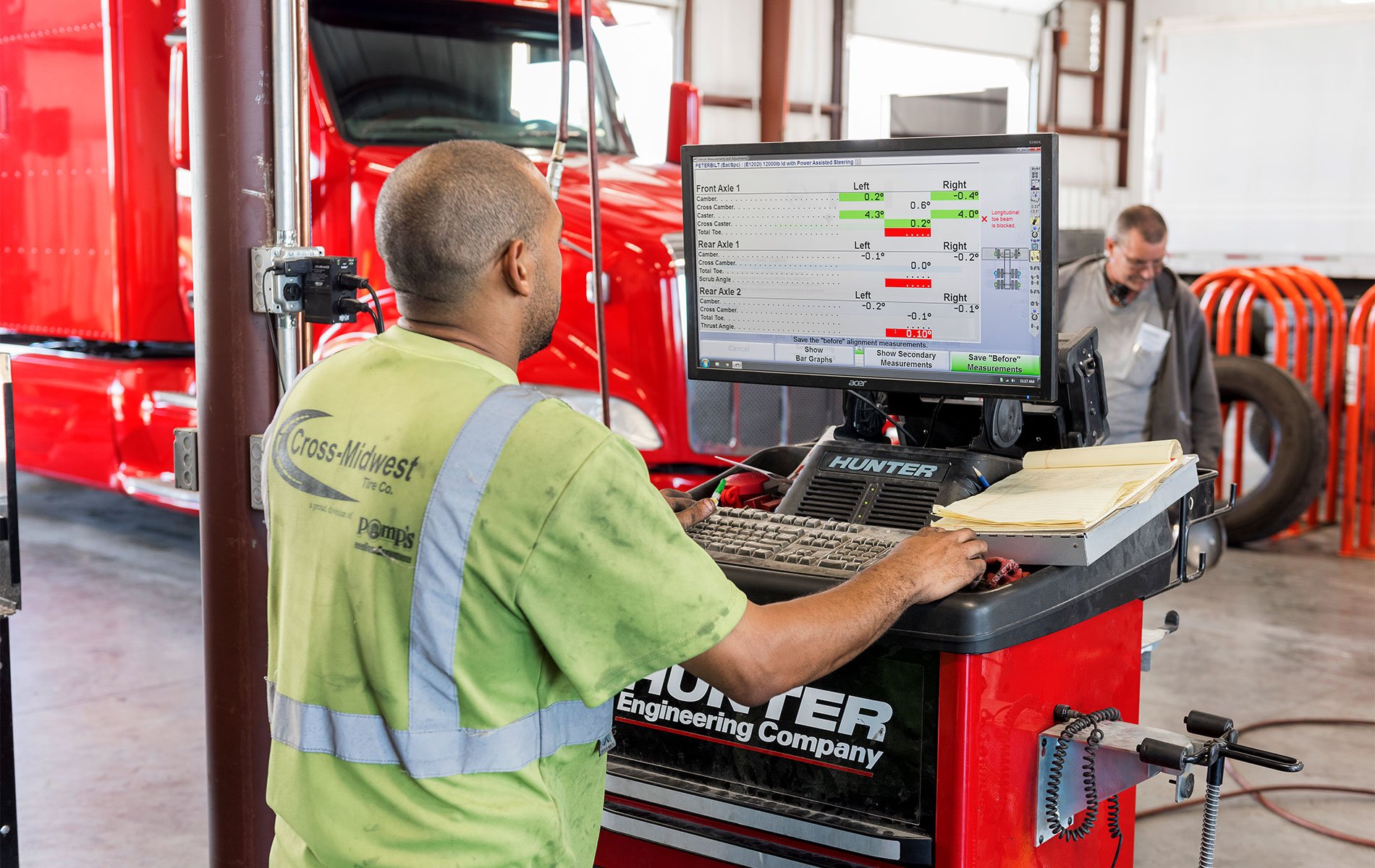

  6. Print results



3:00 total



Make your shop time count. Check truck alignment angles in just 3 minutes.

Contact your local Hunter representative to get a free quote.





Unmatched software

Patented technology maximizes productivity in your alignment bay

Vehicle-specific

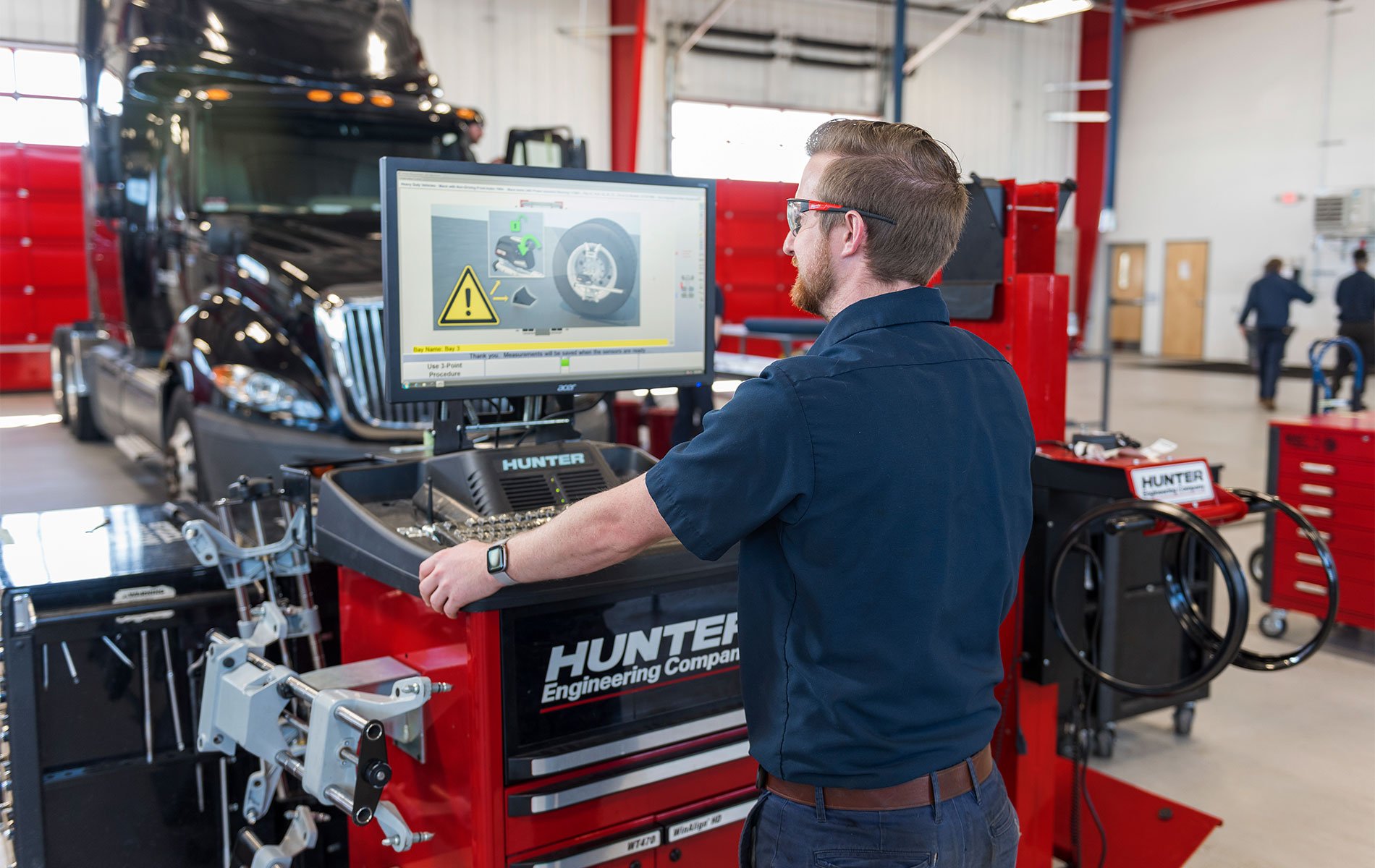

Procedures guide your technicians with step-by-step instructions specific to the vehicle.

Patented power tools

Procedures designed so you can complete the work accurately the first time, every time.

Light-duty vehicles

Additional features included for servicing light-duty vehicles

Six Sensors Live

See three axles live with all measurements at once. Reduce setup time through minimal sensor movement.

ExpressAlign®

Perform every alignment with a streamlined procedure. ExpressAlign® analyzes each job and presents the optimal action sequence with the minimum steps required.

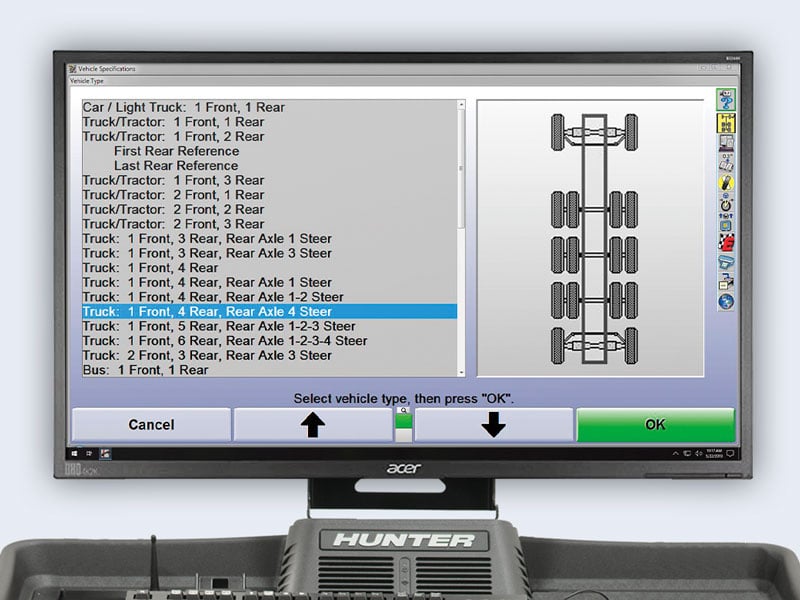

60+ Axle Configurations Possible

WinAlign® HD software supports more than 60 customized truck, trailer and bus alignment procedures as well as passenger car and light truck alignment.

WinToe®

Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder. Works with all vehicles on the road today, from cars to Freightliners.





Rear Axle Adjustment

Cut adjustment times in half for rear axle corrections. Graphics let you get it right on the first try.

Patented

Automatic Bushing Calculator®

Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Eases the process of servicing Ford F-150-450's.

Patented

Frame Offset Angle

Measure frame offset angle and calculate adjustments to frame centerline, if a frame reference alignment is needed.

Adjustment Videos

Strengthen technician competency and extend profit opportunities with helpful adjustment videos.





Your local Hunter service representative can answer questions, help with equipment operation and provide on-site training.





Turnplate options

Perform alignments in your workspace

Surface-Mount

Utilize an existing pit
  • Permanent installation
  • Easily accomodates existing pits, no need for a rack
  • Adjustable track width — half-ton to Class 8
  • 22,000 lbs. (10,000 kg) per axle
  • Built-in turnplate bridges for rolling compensation

Rack-Mount

Enhance your rack
  • Compatible with Hunter HD alignment pit rack models
  • Perform Quick Check®s and alignments more easily
  • Adjustable track width — half-ton to Class 8
  • 22,000 lbs. (10,000 kg) per axle
  • Built-in bridges for rolling compensation

Flush-Mount

Great for new construction
  • Level profile — reduces tripping hazards
  • Provides clean installation and smooth approach
  • Adjustable track width — half-ton to Class 8
  • 22,000 lbs. (10,000 kg) per axle
  • Built-in turnplate bridges for rolling compensation

Portable

Ultimate versatility
  • Perfect for multiple bays or multiple steer axles (additional sets required)
  • Mobile alignment service
  • 22,000 lbs. (10,000 kg) per axle

HunterNet® online business tools

Provide complete, accurate information for your customers and your shop

Set goals

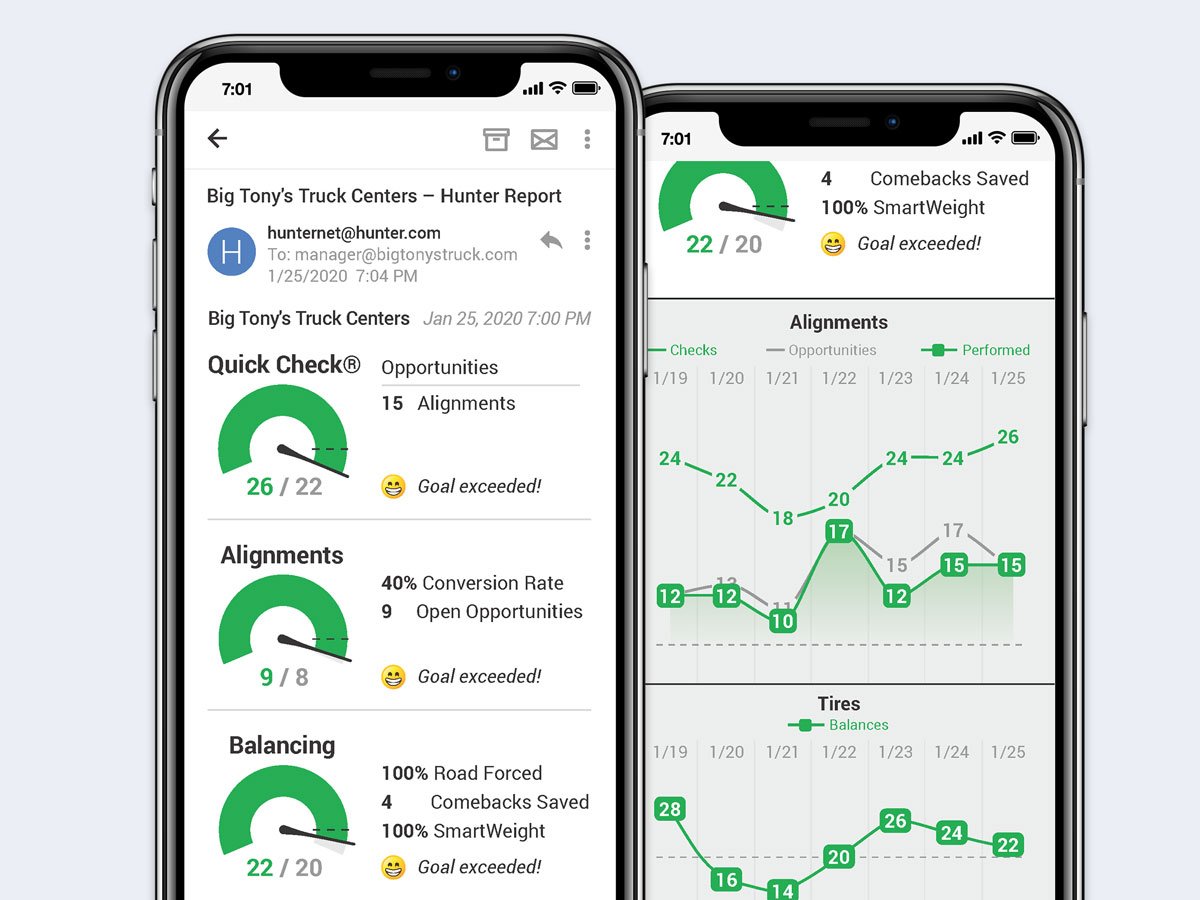

Easy-to-understand report measures output, opportunities & achievements

Identify Opportunities

Easily see shop performance over time and ensure utmost utilization



Maximize productivity

Automatic, daily delivery via email and text

Set goals and track productivity

  • Automatic daily snapshots in addition to a 7-day overview of performance trends
  • View inspection rates and opportunities
  • Measure alignment numbers and conversions
  • Track balancing and road force® utilization


Communicate results and maintain customer data

  • Save & recall vehicle results
  • Allow customers to view results online
  • Provide results to other business to validate warranties or insurance claims


Automatically display inspection results

  • Provide complete transparency
  • Simplify communication
  • Sell more alignment service

Return on investment

More opportunities bring higher profits

Unlock heavy-duty
alignment profits

Complete more alignments; one of the industry's most profitable services.

Faster setups provide more opportunities

Faster setup time allows you to check every vehicle that comes in your shop.

Identify additional
needed repairs

Heavy-duty Quick Check® helps discover profitable alignment repairs.

ROI — 3 alignments per day

Ten-year return on a $49,000 investment





Send a message to your local Hunter representative to schedule a free on-site demo.





See how other shops have increased productivity

Ready to get to work?

Contact your local Hunter representative for a free demonstion of what WinAlign® HD can do for your shop.









Explore further

Built in the USA

Family owned, goal-driven

Expert assembly goes into each alignment system, alignment console, tire changer, balancer, brake lathe and other components.

Hunter service

Largest in the industry

Hunter deploys the largest service force of highly-qualified representatives in the industry.

Hunter Training

ASE-Certified

Learn from knowledgable trainers in hands-on equipment usage and classroom learning.
